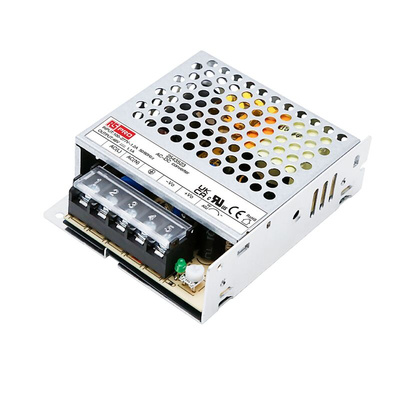

RS PRO AC-DC Power Supply, 48V dc, 1.1A, 50W, 1 Output, 120 → 430V dc Input Voltage

RS PRO Embedded AC-DC Switching Power Supplies- 50W

Get the power you need, where you need it! RS PRO's switching power supplies deliver cost-effective, reliable, and high-efficiency solutions. With a universal AC input and DC input voltage acceptance, low no-load power consumption, and compact size, these supplies are ideal for industrial and manufacturing applications. Stop settling for sub-par power supplies - explore the RS PRO range.

Why would you choose these power supplies?

These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943 standards and are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Features and Benefits

• Embedded power supply


• Compact


• Universal AC input and while accepting DC input voltage


• Over-voltage class Ⅲ


• Output short circuit, over-current, over-voltage protection


• Supplied with terminal cover

Specification

• Package Type: Enclosed


• Power Rating: 50 W


• Output: Single


• Efficiency: 90%


• Output Voltage Range: 12 Vdc, 24 V dc, 48 Vdc


• Output current of 1.1A, 2.2A, 4.2 A


• Operating temperature range of -30˚C to +70˚C


• Weight of 190 g

Dimensions

• Length: 90 mm


• Width: 82 mm


• Depth: 30 mm

50W Variants Available Separately

• 12 V dc, RS stock no: 254-3521


• 24 Vdc, RS stock no: 254-3522


• 48 Vdc, RS stock no: 254-3523

Applications

• Industrial control systems


• Instrumentation and lighting
