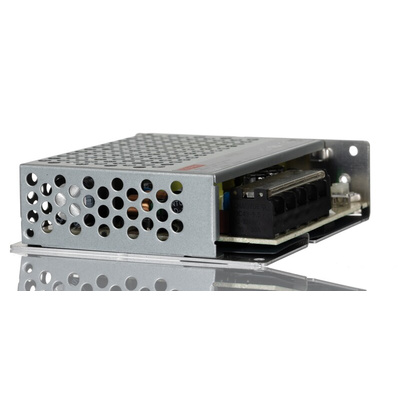

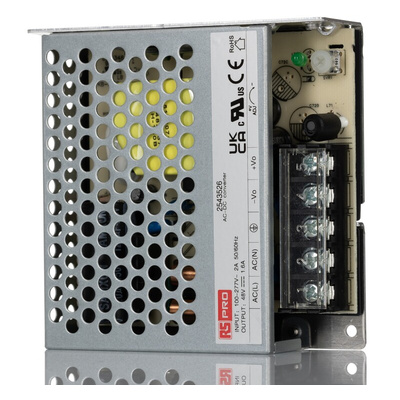

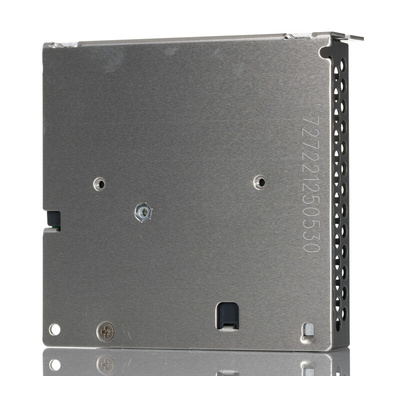

RS PRO AC-DC Power Supply, 48V dc, 1.6A, 75W, 1 Output, 120 → 430V dc Input Voltage

RS PRO Embedded AC-DC Switching Power Supplies- 75W

Get your power supplies under control with RS PRO's embedded AC-DC switching power supplies! Our range of cost-effective, low no-load power consumption, high efficiency and reliable solutions are perfect for a variety of manufacturing and industrial applications. Enjoy the convenience of universal AC input while accepting DC input voltage, and switch up your power game.

Why would you choose these power supplies?

These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, and GB4943 standards and are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

Features and Benefits

• Embedded power supply


• Compact


• Universal AC input and while accepting DC input voltage


• Over-voltage class Ⅲ


• Output short circuit, over-current, over-voltage protection


• Supplied with terminal cover

Specification

• Package Type: Enclosed


• Power Rating: 75 W


• Output: Single


• Efficiency: 91%


• Output Voltage Range: 12 Vdc, 24 V dc, 48 Vdc


• Output current of 1.6A, 3.2A, 6A


• Operating temperature range of -30˚C to +70˚C


• Weight of 220 g

Dimensions

• Length: 99 mm


• Width: 97 mm


• Depth: 30 mm

75W Variants Available Separately

• 12 V dc, RS stock no: 254-3524


• 24 Vdc, RS stock no: 254-3525


• 48 Vdc, RS stock no: 254-3526

Applications

• Industrial control systems


• Instrumentation and lighting

RS PRO Datasheet
