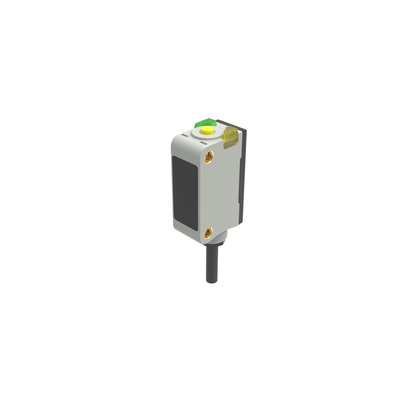

RS PRO TOF (Time of Flight) Photoelectric Sensor, Block Sensor, 1 m Detection Range

RS PRO Photocell Photoelectric Sensor Rectangular TOF 100 cm Detection

The Photocell photelectric sensor from RS PRO includes excellent detection distance measurement sensor using TOF (time of flight) technology providing stable and reliable sensor detection. The photoelectric sensor has a plastic rectangular / square shape design plus is IP67 rated (waterproof) making the sensor suitable for use in harsh environments. Flexible and easy to operate, button adjustment, infrared laser light source, LED output indicators, one key distance setting, short circuit, overload, reverse, and Zener protection are just a few of the features within the RS PRO Photoelectric sensor.

Features & Benefits

• Photocell Photoelectric sensor


• 0.5 cm to 100 cm detection range


• Good detection accuracy distance measurement detection, TOF Concept


• Accurate, fast


• Button adjustment


• M8 4-pin Connection


• Infrared laser (940nm) light source


• Anti-ambient light – sunshine, incandescent, fluorescent lamp


• Square shape, easy installation


• PNP NO+NC output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, reverse polarity protection, and Zener


• Green and Yellow LED output indicator


• PC plus ABS sensor housing, PMMA Filter


• IP67 Protection


• CE Certified

Applications

• Any application where sensor distance measurement is necessary, suitable for harsh environments

What is TOF / ToF?

ToF concept is short for Time of Flight which is really a depth measurement reading using infrared light beams. The sensor used sends out an infrared light beam which when it hits an object sends the light beam back to the sensor and measures the time it took the light beam going out and reflected back.
