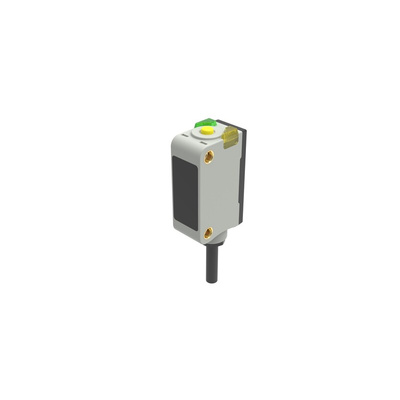

RS PRO Diffuse Reflection Photoelectric Sensor, Block Sensor, 3 m Detection Range

RS PRO Photoelectric Sensor Rectangular TOF 3m Detection RS485 Output

The Photelectric sensor from RS PRO includes excellent detection distance measurement sensor using TOF (time of flight) technology providing stable and reliable sensor detection. The photoelectric sensor has a plastic rectangular / square shape design plus is IP67 rated (waterproof) making the sensor suitable for use in harsh environments. Flexible and easy to operate, RS485 output, LED output indicators, Cable connection, quick 35 Ms response time are just a few of the features within the RS PRO Photoelectric sensor.

Features & Benefits

• Photoelectric sensor


• 0.5 cm to 300 cm detection range


• Good detection accuracy distance measurement detection, TOF Concept


• Accurate, fast


• 0.5 m PVC Cable Connection


• Anti-ambient light –Sunshine 10,000L x Incandescent 3000L, Fluorescent Lamp 1000L


• Square shape, easy installation


• RS485 output


• Supply voltage 10 to 30 V dc


• Green LED output indicator


• PC plus ABS sensor housing


• IP67 Protection


• CE Certified

What is TOF / ToF?

ToF concept is short for Time of Flight which is really a depth measurement reading using infrared light beams. The sensor used sends out an infrared light beam which when it hits an object sends the light beam back to the sensor and measures the time it took the light beam going out and reflected back.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards, they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
