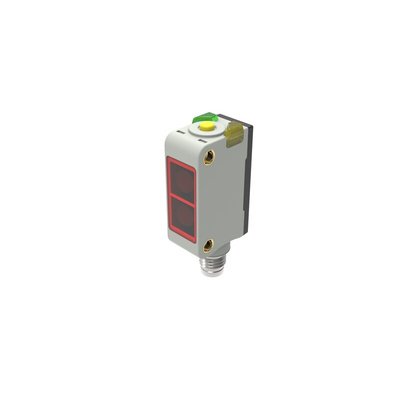

RS PRO Transparent Bottle Detection Photoelectric Sensor, Block Sensor, 2 m Detection Range

RS PRO Transparent Objects Retro-Reflective Photoelectric Sensor Rectangular 2 m Detection

The Retro-Reflective photelectric sensor from RS PRO includes excellent detection sensor using visible blue light technology, Light-on / Dark-on mode, providing stable and reliable sensor detection. The photoelectric sensor has a plastic rectangular / square shape design plus is IP67 rated (waterproof) making the sensor suitable for use in harsh environments. Flexible and easy to operate, button adjustment, LED output indicators, sensitivity one key setting, no blind zone, short circuit, overload, and polarity protection are just a few of the features within the RS PRO Photoelectric sensor.

Features & Benefits

• Retro-reflective Photoelectric sensor


• 2 m detection range


• Transparent object detection


• Good stable detection accuracy, light-on / dark-on mode sensitivity


• Accurate, fast


• Button adjustment


• M8 Connection


• Blue light 460nm light source


• Anti-ambient light –Sunshine 10,000Lux x Incandescent 3,000Lux


• Square shape, easy installation


• PNP output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, reverse polarity protection


• Green and Yellow LED, Overload output indicators


• PC plus ABS sensor housing, PMMA Filter


• IP67 Protection


• CE Certified

Applications

• Transparent object detection


• Glass detection, film, PET Bottles, transparent packaging


• Counting bottles and glasses


• Monitoring film for tears and damage


• Food, beverage, and pharmaceutical industries
