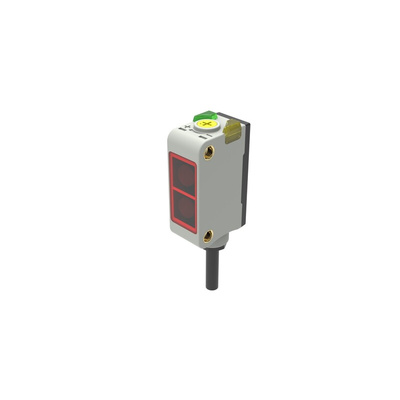

RS PRO background Suppression Photoelectric Sensor, Block Sensor, 0.25 m Detection Range

RS PRO Diffuse Reflection (BGS) Photoelectric Sensor Rectangular 25 cm Detection

The Diffuse reflection photelectric sensor from RS PRO includes BGS (background suppression), excellent light reflection measurement sensor using background suppression technology providing stable and reliable sensor detection. The photoelectric sensor has a plastic rectangular / square shape design plus is IP67 rated (waterproof) making the sensor suitable for use in harsh environments. Flexible and easy to operate, infrared light source, LED output indicators, 1 Ms response time, universal housing, distance adjustment, short circuit, overload, reverse, and Zener protection are just a few of the features within the RS PRO Photoelectric sensor.

Features & Benefits

• Diffuse Reflection Photoelectric sensor


• 25 cm detection range


• Good detection accuracy distance using background suppression (BGS) technology


• 5-turn knob distance adjustment


• 2 m PVC Cable Connection


• Red (640 nm) light source


• Anti-ambient light – Anti-sunlight interference 10,000 Lux, incandescent light 3,000 Lux


• NPN NO-NC output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, reverse polarity protection, and Zener protection


• Green and Yellow LED output indicator


• PC plus ABS sensor housing, PMMA Filter


• Size is 32.5 mm x 20 mm x 10.6 mm


• IP67 Protection


• CE Certified

Applications

• Detecting several objects from a common carrying system


• Detection of translucent objects, levels of contained substances


• Detecting a box, material, or part


• Error detection and many more

What is the Diffuse Reflection Photoelectric Sensor

Diffuse reflection sensors are used for the direct detection of an object when the light sent out from the sensor hits the object and is reflected back to the sensor receiver then the diffuse reflection sensor issues a switching signal. The transmitter and the receiver are combined within the sensor in a singular housing. The transmitter sends out a continuous beam of light which can be red light, infrared or laser light.
