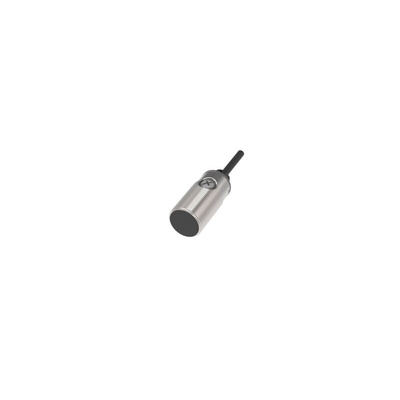

RS PRO Diffuse Photoelectric Sensor, Cylindrical Sensor, 40 cm Detection Range

RS PRO Diffuse Reflection Photoelectric Sensor Cylindrical Barrel Adjustable 40 cm Detection

The Diffuse reflection photelectric sensor from RS PRO includes excellent performance providing you with a rated sensing distance of up to 40 cm. The photoelectric sensor has a shortened cylindrical barrel shape ergonomic design plus includes EMC capability and high light immunity for various applications. Having a barrel or cylindrical shape allows for easy and quick flush sensor installation making the RS PRO photoelectric sensor an excellent choice for use in small and confined space environments. The wealth of features with the sensor includes infrared light source, LED display allowing you to check the sensors operation, function, and switching all providing complete short circuit, overload, and reverse protection.

Features & Benefits

• Diffuse reflection Photoelectric sensor


• 40 cm detection range


• Single turn potentiometer adjustment for distance


• Good detection accuracy


• Excellent for non-metallic target detection, transparent object detection


• 2 m PVC Cable Connection, M18 nut


• infrared light source 940 Nm


• Anti-sunlight interference 10,000 Lux, Incandescent light interference 3,000 Lux


• Cylindrical barrel shape, short housing, easy installation


• NPN NO+NC output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, and reverse polarity protection


• Yellow and green LED output indicator, 360° visibility


• Nickel-copper alloy housing, sensor length 65 mm


• PMMA Filter


• IP67 Protection


• CE Certified

Applications

• Automation door and gate systems, storage and conveyor systems, material flow technology


• Transparent product detection, packaging, industrial and many more complex working environments
