RS PRO Polarised Retro Reflection Photoelectric Sensor, Block Sensor, 3 m Detection Range

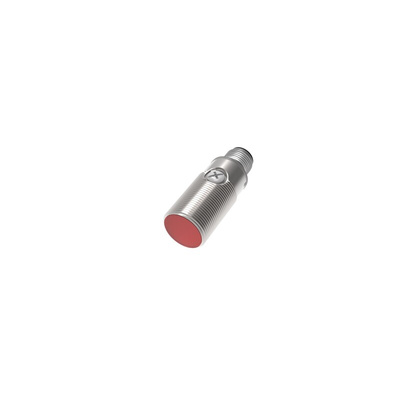

RS PRO Polarized Reflection Photoelectric Sensor Cylindrical 18 mm Threaded Barrel Adjustable 3 m Detection

The Polarized reflection photelectric sensor from RS PRO includes excellent performance providing you with a rated sensing distance of up to 3 m. The photoelectric sensor has a shortened cylindrical barrel shape ergonomic design plus includes EMC capability and high light immunity for various applications. Having a barrel or cylindrical shape allows for easy and quick flush, flat sensor installation making the RS PRO photoelectric sensor an excellent choice for use in small and confined space environments. The wealth of features with the sensor includes infrared light source, long distance detection aided by reflectors, LED display allowing you to check the sensors operation, function, and switching all providing complete short circuit, overload, and reverse protection.

Features & Benefits

• Polarized reflection Photoelectric sensor


• TD-09 Reflector


• 3 m detection range


• Single turn potentiometer adjustment for distance


• Good detection accuracy


• Excellent for a stable strong object detection no matter the shape, colour, or material


• M12 4-core Connection


• Red light source 640 Nm


• Anti-sunlight interference 10,000 Lux, Incandescent light interference 3,000 Lux


• 18 mm cylindrical barrel shape, short housing, easy installation


• NPN NO+NC output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, and reverse polarity protection


• Yellow and green LED output indicator, 360° visibility


• Nickel-copper alloy housing


• PMMA Filter


• Sensor overall length 47.2 mm


• IP67 Protection


• CE Certified

Applications

• Automation door and gate systems, storage and conveyor systems, material flow technology


• Transparent product detection, packaging, industrial and many more complex working environments, stable and strong detection of objects no matter their shape, colour, or material
