RS PRO Diffuse Photoelectric Sensor, Cylindrical Sensor, 20 m Detection Range

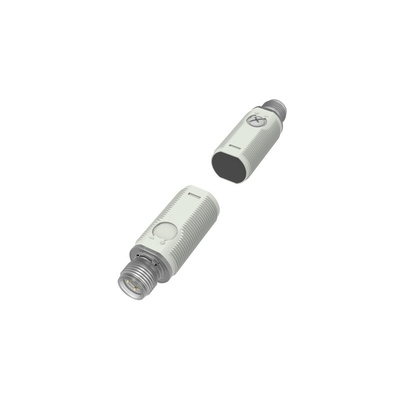

RS PRO Through Beam Photoelectric Sensor Cylindrical 18 mm Threaded Barrel Adjustable 20 m Detection

The Through Beam photelectric sensor from RS PRO includes excellent performance providing you with a rated sensing distance of up to 20 m. The photoelectric sensor has a shortened cylindrical barrel shape ergonomic design plus includes EMC capability and high light immunity for various applications. Having a barrel or cylindrical shape allows for easy and quick flush, flat sensor installation making the RS PRO photoelectric sensor an excellent choice for use in small and confined space environments. The wealth of features with the sensor includes infrared light source, long distance detection, LED display allowing you to check the sensors operation, function, and switching all providing complete short circuit, overload, and reverse protection, flexible and easy to use emitter and receiver.

Features & Benefits

• Through Beam Photoelectric sensor


• 20 m detection range


• Emitter and receiver 20 mA


• Single turn potentiometer adjustment for distance


• Good detection accuracy


• Excellent for a stable strong object detection no matter the shape, colour, or material


• M12 4-core Connection


• Infrared light source 850 Nm


• Anti-sunlight interference 10,000 Lux, Incandescent light interference 3,000 Lux


• 18 mm cylindrical barrel shape, short housing, easy installation


• PNP NO+NC output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, and reverse polarity protection


• Yellow and green LED output indicator, 360° visibility


• PC and ABS housing


• PMMA Filter


• IP67 Protection


• CE Certified

Applications

• Automation door and gate systems, storage and conveyor systems, material flow technology


• Transparent product detection, packaging, industrial and many more working environments, stable and strong detection of objects no matter their shape, colour, or material
