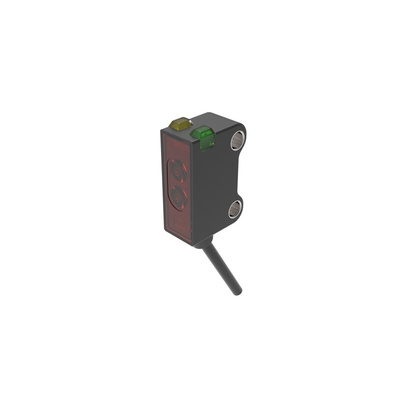

RS PRO Retro Reflective Photoelectric Sensor, Block Sensor, 0.25 m Detection Range

RS PRO Transparent Objects Retro-Reflective Miniature Photoelectric Sensor Rectangular 25 cm Detection

The Retro-Reflective photelectric sensor from RS PRO includes excellent detection sensor using TD-11 reflector plus Red light source, providing stable and reliable sensor detection. The miniature photoelectric sensor has a plastic rectangular / square shape design plus is IP67 rated (waterproof) making the sensor suitable for use in harsh environments. Flexible and easy to operate, translucent object detection, transmitter, and receiver in one housing, LED output indicators, short circuit, overload, and polarity protection are just a few of the features within the RS PRO Photoelectric sensor.

Features & Benefits

• Retro-reflective Photoelectric sensor


• 25 cm detection range


• Transparent object detection


• Good stable detection accuracy


• Accurate, fast


• 2 m PVC Cable


• Red light 640 nM source


• Anti-ambient light –Sunshine 10,000Lux x Incandescent 3,000Lux


• Square shape, easy installation


• NPN NO output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, reverse polarity protection


• Green and Yellow LED, Overload output indicators


• Miniature PC plus ABS sensor housing, PMMA Filter


• Size 21.8 x 8.4 x 14.5 mm


• IP67 Protection


• CE Certified

Applications

• Transparent object detection


• Glass detection, film, PET Bottles, transparent packaging


• Counting bottles and glasses


• Monitoring film for tears and damage


• Food, beverage, and pharmaceutical industries
