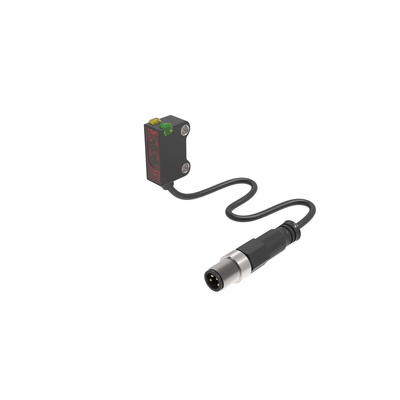

RS PRO Convergent Reflective Limited Miniature Photoelectric Sensor Rectangular 2 to 25 mm Detection

The Convergent Reflective photelectric sensor from RS PRO includes excellent limited detection sensor using a red-light source, providing stable and reliable zoned sensor detection. Any objects that fall outside the detection zone will not be detected by the photoelectric sensors light, objects that fall within the light zone are accurately detected. The miniature photoelectric sensor has a plastic rectangular / square shape design plus is IP67 rated (waterproof) making the sensor suitable for use in harsh environments. Flexible and easy to operate, LED output indicators, M3 threaded installation, easy installation, short circuit, overload, and polarity protection are just a few of the features within the RS PRO Photoelectric sensor.

Features & Benefits

• Convergent reflective Photoelectric sensor


• 2 to 25 mm detection range


• 2 mm Dead zone


• Good stable detection accuracy


• Accurate, fast


• 20 cm PVC plus M8 Connector, 3-pins


• Red light 640 nM source


• Anti-ambient light –Sunshine 10,000Lux x Incandescent 3,000Lux


• Square shape, easy installation


• NPN NO output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, reverse polarity protection


• Green and Yellow LED, Overload output indicators, 360° visibility


• Miniature PC plus ABS sensor housing, PMMA Filter


• Size 21.8 x 8.4 x 14.5 mm


• IP67 Protection


• CE Certified

Applications

• Transparent object detection


• No matter the colour or transparency, when within the limited zone area all objects will be detected
