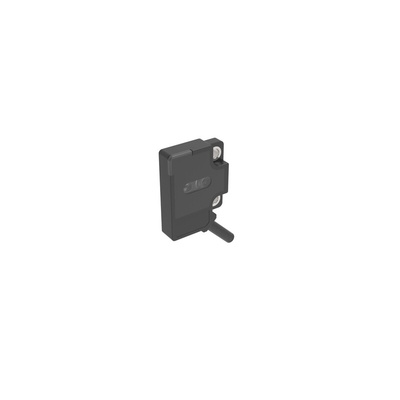

RS PRO Light Convergent Reflection Photoelectric Sensor, Block Sensor, 25 mm Detection Range

RS PRO Convergent Reflective Limited Miniature Photoelectric Sensor Rectangular 25 mm Detection

The Convergent Reflective photelectric sensor from RS PRO includes excellent limited detection sensor using a red-light source, providing stable and reliable zoned sensor detection. The photoelectric sensors are an advanced optical sensor complete with built-in photo-micro-sensors. The miniature photoelectric sensor has a rectangular / square shape design plus is IP67 rated (waterproof) making the sensor suitable for use in harsh environments. Flexible and easy to operate, detect transparent, glossy and reflective objects, LED output indicators, easy installation, short circuit, overload, polarity and Zener protection are just a few of the features within the RS PRO Photoelectric sensor.

Features & Benefits

• Convergent reflective Photoelectric sensor


• 25 mm detection range


• 2 mm Dead zone


• Good stable detection accuracy


• Accurate, fast


• 2 m Cable connection


• Red light 640 nM source


• Anti-ambient light –Sunshine 10,000Lux x Incandescent 3,000Lux


• Square shape, easy installation


• PNP NO output


• Supply voltage 10 to 30 V dc


• Short circuit, overload, reverse polarity, Zener protection


• Green and Yellow LED, Overload output indicators, 360° visibility


• Miniature PC plus ABS sensor housing, PC Lens


• Size 19.6 x 14 x 4.2 mm


• IP67 Protection


• CE Certified

Applications

• Transparent, Glossy, Glass plate, low reflective black object detection


• No matter the colour or transparency, when within the limited zone area all objects will be detected
