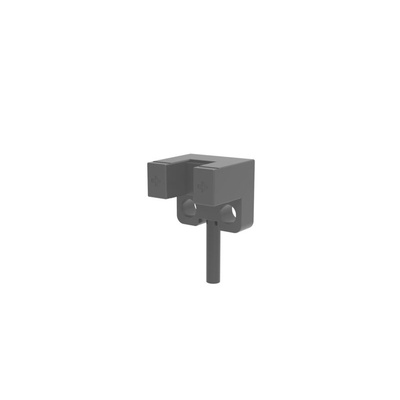

RS PRO Through Beam Photoelectric Sensor, Fork Sensor, 5 mm Detection Range

RS PRO Fork / Slot Through Beam Photoelectric Sensor U Shape Fixed 5 mm Detection

The Through Beam reflection photelectric sensor from RS PRO includes excellent performance providing you with a fixed sensing distance of 5 mm. The photoelectric sensor has a U fork or slot shape design where objects pass through the slot or between the U Fork which uses through-beam photoelectric technology to detect the objects. The transmitter, and receiver designed so that with the slot sensor they face each other but will only work with objects that can pas between the transmitter and receiver. The wealth of features with the sensor includes infrared light source, fixed distance detection, anti-interference, high optical resolution, easy alignment, NPN selectable, LED display allowing you to check the sensors operation all providing complete short circuit, overload, reverse polarity protection, flexible and easy to use emitter and receiver.

Features & Benefits

• Through Beam Reflection Photoelectric sensor


• Fork / Slot U Shaped design


• Various models available


• 5 mm Fixed detection range


• Good detection accuracy


• Excellent for a stable strong object detection especially small objects


• 1 m PVC Cable Connection


• Infrared LED light source 855 Nm


• Anti-Ambient light fluorescent lamp 1,000 Lux


• PNP NO/NC output


• Supply voltage 5 to 24 V dc


• Short circuit, overload, reverse polarity protection


• Yellow LED output indicator


• Quick set-up, alignment of transmitter and receiver not required


• PBT housing


• IP65 Protection


• CE Certified

Applications

• Automation door and gate systems, storage and conveyor systems, material flow technology


• Transparent product detection, packaging, industrial and many more working environments, stable and strong detection of objects

What is the Through-Beam Photoelectric Sensor

This sensor is made up of a light emitter and a light receiver, the detection distance can be increased by separating the light emitter and receiver. When using the through-beam sensor the emitted and receiver are installed either side of the of the path of objects to be detected. When the object passes through the light beam the light is blocked by the object and the light receiving device acts to output a switch control signal.
