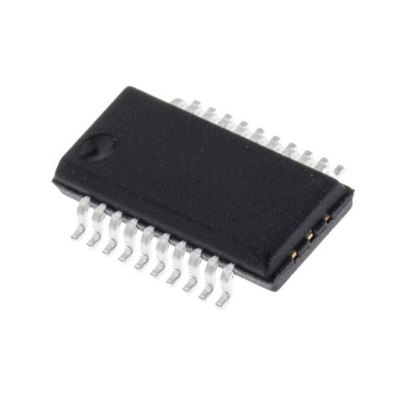

Renesas Electronics 74FCT3807AQG, Clock Divider CMOS, 1-Input, 20-Pin QSOP

The Renesas Electronics clock driver is built using advanced dual metal CMOS technology. This low skew clock driver offers 1:10 fanout. The large fanout from a single input reduces loading on the preceding driver and provides an efficient clock distribution network. It offers low capacitance inputs with hysteresis for improved noise margins. Multiple power and grounds reduce noise. Typical applications are clock and signal distribution.

0.5 MICRON CMOS Technology
Guaranteed low skew < 350 ps (max.)
Very low CMOS power levels
TTL compatible inputs and outputs
1:10 fanout
Maximum output rise and fall time < 1.5 ns (max.)
Maximum operating frequency of 133.33 MHz
Low input capacitance: 4.5 pF typical
VCC is 3.3V ± 0.3V
Inputs can be driven from 3.3V or 5V components
Available in SSOP, SOIC, and QSOP packages

Datasheet - 74FCT3807AQG
