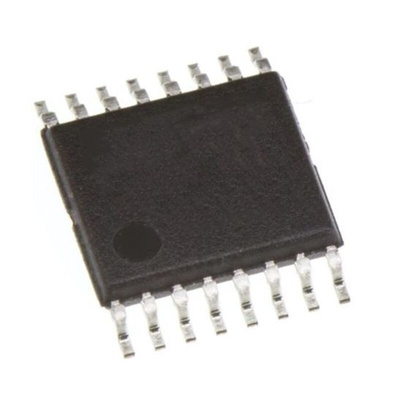

Renesas Electronics QS3VH253PAG, Bus Switch, 2 x 4:1

The Renesas Electronics hot switch quad 4:1 multiplexer/demultiplexer is a high bandwidth bus switch.It has very low ON resistance, resulting in under 250 ps propagation delay through the switch. The select (Sx) input controls the data flow. The multiplexers/demultiplexers are enabled when the enable (EA, EB) input is low. In the ON state, the switches can pass signals up to 5 V. In the OFF state, the switches offer very high impedence at the terminals. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes this ideal for high performance comminucation applications. It is characterized for operation from -40°C to +85°C.

6 V tolerant I/Os
Low RON - 4 Ω typical
Flat RON characteristics over operating range
Bidirectional dataflow with near-zero delay: no added ground bounce
Excellent RON matching between channels
VCC operation is 2.3 V to 3.6 V
High bandwidth is up to 500 MHz
LVTTL-compatible control Inputs
Undershoot clamp diodes on all switch and control inputs
Low I/O capacitance, 4 pF typical
Available in QSOP and TSSOP packages

Datasheet - QS3VH253PAG
