RS PRO2.6 → 3.6V RGB LED 5 mm Through Hole

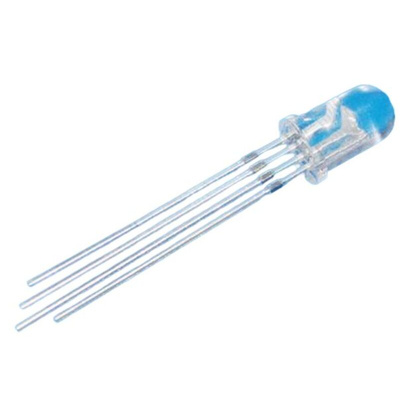

RS PRO Tricolour LED (5mm)

An IC compatible robust multicolour LED (Light Emitting Diode) featuring Red, Pure Green and Blue. A multipurpose 4 pin LED with a single common cathode type offering low power consumption and a high level of reliability.
Designed for through hole mounting the LED is easy to mount with minimum soldering using the 4 leads and at 5mm the round LED lens is clear and easily visible.
This LED utilises a solid state design for long service life and a reliable uniform light output. Ideal for use in applications such as telephones, computers, TV’s and monitors.

Features and Benefits

• 5mm Round LED


• Viewing angle of 25°


• Pin Length of 24 - 27mm


• Pin diameter of 0.5mm


• Distance between Pins 1.27mm


• Operating temperature range of -40°C to 80°C

Standards: ROHS compliant, EU REACH compliant
