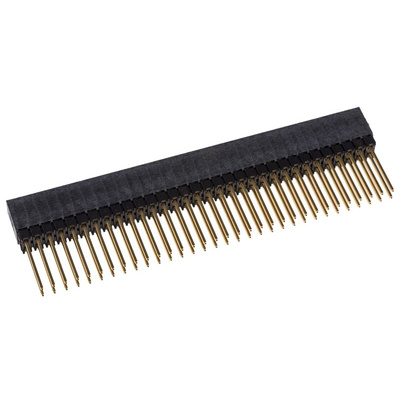

ESQ13239GD, Samtec ESQ Series Straight Through Hole Mount PCB Socket, 64-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, 3A Continuous Current Rating, Glass-Filled Polyester Insulation Material - ESQ Series - ESQ13239GD

Reduce the wiring needs of your circuit board setup by using this Samtec PCB socket. It mates with a compatible header, so you can electrically connect your PCBs in a flash, with minimal kit called for. An elevated design gives you the benefit of high-profile board spacing, which reduces the chance of interference or voltage arcing. Tiger Buy contacts hold on tight for reliable, low-maintenance connections. The module's low maximum contact resistance of 10mΩ ensures optimal power flow. For safety, this socket's glass-filled polyester insulation protects you from electric shocks.

Features & Benefits

• Simple through-hole mounting enables quick and easy assembly
• 64 contacts let you make multiple connections using only one terminal
• Gold-plated pins are corrosion-resistant to stay strong in humid locations
• Industry-standard pitch of 2.54mm for easy mating with common hardware

Applications

• Electronics manufacturing
• Security systems
• Transportation industry
• Telecommunication centres

What's the insertion force of this PCB socket?

The unit's low insertion force of 0.92N reduces friction and wear between mated parts, helping to increase the lifespan of your PCB connections.

2.54mm Board to Board and Wire to Board - Samtec

EMBASE FEMELLE PC 104

Line Drawing - ESQ13239GD
