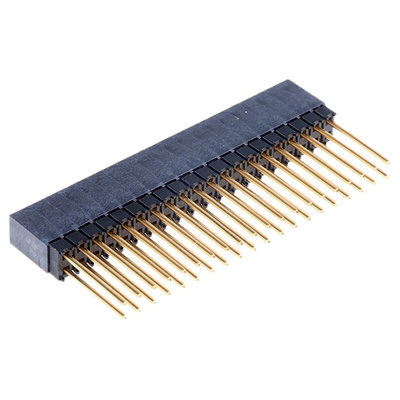

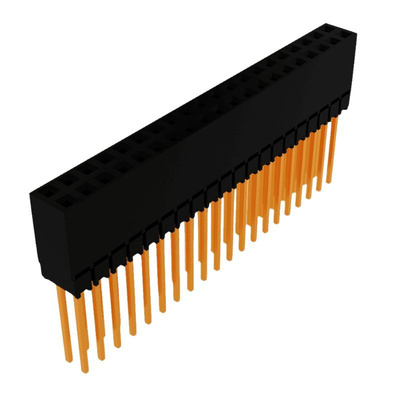

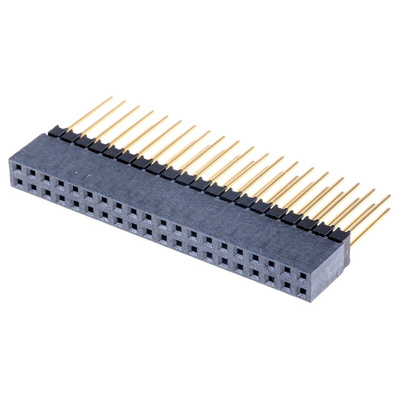

ESQ12039GD, Samtec ESQ Series Straight Through Hole Mount PCB Socket, 40-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, Tiger Buy Contact System, Gold-Plated Contacts - ESQ Series - ESQ12039GD

Stacking circuit boards is a piece of cake when you use this PCB socket from Samtec. It has 40 contacts, so you can make multiple connections using one unit, saving you time and board mounting space. Thanks to the extended insertion depth of its Tiger Buy contacts, you can rest assured of a superior retention force. This makes the socket reliable and reduces its maintenance needs. An insulated glass-filled polyester body protects you against electric shock during installation. As this product features corrosion-resistant phosphor bronze pins, it's a suitable choice for humid settings.

Features & Benefits

• Gold-plated contacts for a high level of electrical conductivity
• Current rating of 5.7A per pin makes it compatible with demanding setups
• Low average insertion force of 0.9N to reduce operator fatigue
• Vertical orientation for straightforward connections

Applications

• Data and communication centres
• Security systems
• Military and defence sector
• Medical and pharmaceutical production

What's the benefit of this PCB socket's elevated design?

This socket strip's elevated design allows for higher profile board spacing, which reduces the chance of interference with other components on your PCB.
