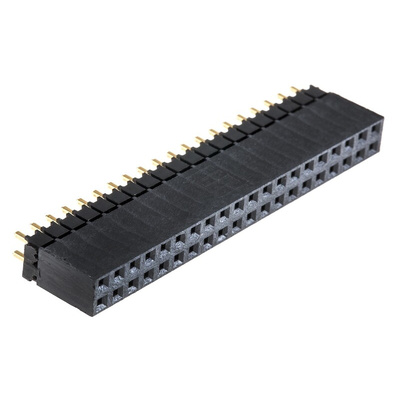

ESQ12037GD, Samtec Straight Through Hole Mount PCB Socket, 40-Contact, 2-Row, 2.54mm Pitch, Solder Termination

Samtec PCB Socket, For 0.64mm Square Pins, 5.7A Current Rating Per Pin - ESQ Series - ESQ12037GD

Need more room on your PCB? Get a higher clearance when you're making board-to-board connections using this elevated PCB socket from Samtec. It has pins on the bottom for through-hole mounting and sockets on the top for attaching a header. This gives you a reliable way to connect and layer your boards. Each of its 40 contacts has a current rating of 5.7A, so you can distribute power to multiple components at once.

Features & Benefits

• Gold-plated phosphor bronze contacts are highly conductive and resistant to corrosion for a dependable connection
• Glass-filled polyester body is resistant to heat and abrasion
• Wide operating temperature range between -55°C and +125°C, so it's tough enough for use in harsh environments
• Supports wave soldering for speedy installation

Applications

• Electronics
• Machine building
• Industrial automation
• Instrumentation

How can I create more space between two PCBs?

You can plug a stackable square-pin socket (196-9833) into this unit to increase the stacking height between two PCBs. This allows for added flexibility and modularity in your circuit assembly.
