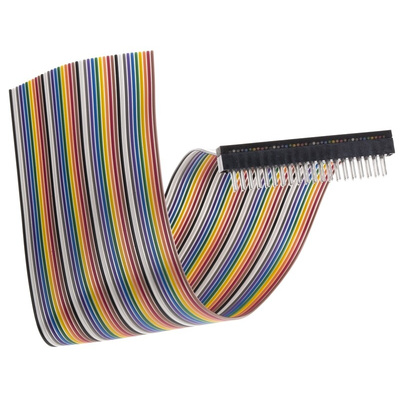

HCMD-20-S-10.00-02, Samtec HCMD Series Flat Ribbon Cable, 40-Way, 2.54mm Pitch, 250mm Length, IDC to Unterminated

Samtec Ribbon Cable, Black Liquid Crystal Polymer Insulation Material, 250mm Length - HCMD Series - HCMD-20-S-10.00-02

Are you building or repairing a PC or laptop? Connect components inside your computer with ease using this ribbon cable from Samtec. It features a male plug on one end to streamline a direct link to your motherboard. The other end is unterminated, so you can choose the connection option that suits your needs. Its black liquid crystal polymer insulation offers up to 5000 megaohms of resistance, reducing current leakage for enhanced safety. The tin-over-nickel-plated phosphor bronze contacts maximise conductivity and minimise corrosion for a reliable, uninterrupted connection.

Features & Benefits

• Operates reliably at temperatures between -65°C and +80°C to cope with challenging environments
• Withstands voltages up to 1000Vrms at 60Hz to stand up to powerful surges
• Compact length of 250mm to add minimal bulk to your setup

Applications

• IT infrastructure
• Control panels
• Consumer electronics

What type of wire does the cable use?

The product uses stranded tinned copper wires. These wires are popular for internal computer cables as they're flexible, highly conductive and resistant to high temperatures.

2.54mm Board to Board and Wire to Board - Samtec

CORDON PC 104

Line Drawing - HCMD-20-S-10.00-02
