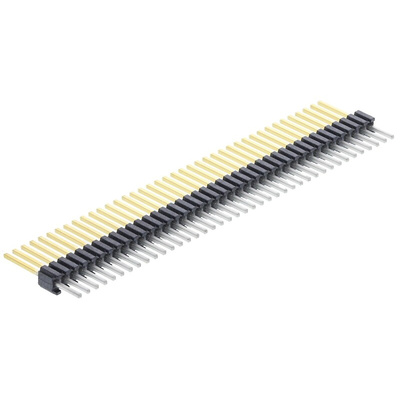

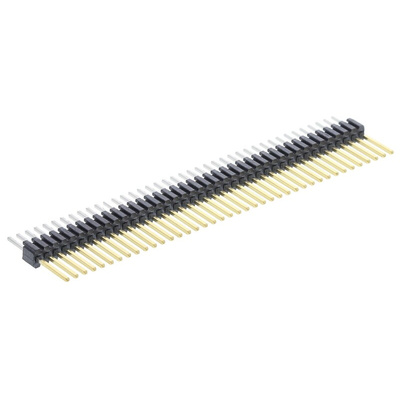

TMS-140-01-S-S, Samtec TMS Series Straight Through Hole Pin Header, 40 Contact(s), 1.27mm Pitch, 1 Row(s), Unshrouded

Samtec Pin Header, 1A Current Rating, Phosphor Bronze Terminal Material - TMS Series - TMS-140-01-S-S

Looking for a simple way to set up your PCB? It's a breeze when using this pin header from Samtec. Simply mount this single-row unit onto your circuit board, and its 40 contacts offer multiple points for electrical connections. As its phosphor bronze contacts are highly conductive and resistant to corrosion, you can rely on this unit for optimal energy flow. A maximum processing temperature of +230°C for 60 seconds means you can solder it to your PCB, which removes the hassle of drilling holes and cuts down on installation time.

Features & Benefits

• Current rating of 1A for use in low-power applications
• Wide operating temperature range between -55°C and +125°C makes it suitable for use in demanding settings
• Unshrouded to save space in your setup
• Small pitch of 1.27mm keeps your connections compact

Applications

• Data and telecommunications centres
• Electronics manufacturing
• Automotive repair
• Aerospace engineering

Is this pin header insulated?

Yes, for additional safety, the product is insulated with black glass-filled polyester to minimise the risk of electric shocks.

BARRETTE MALE 1.27 MM

Line Drawing - TMS-140-01-S-S
