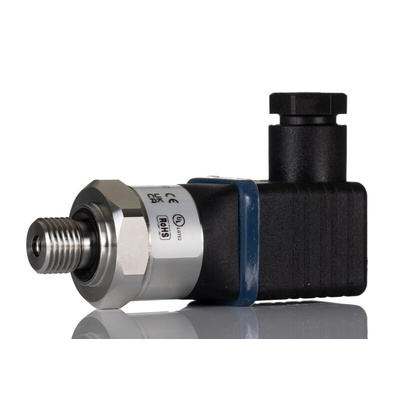

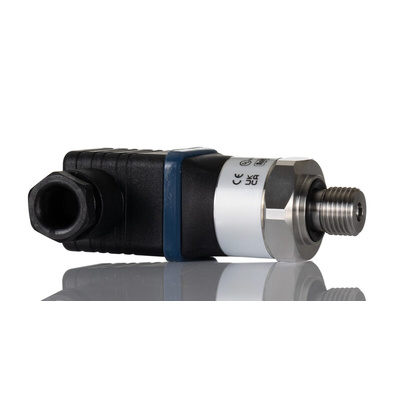

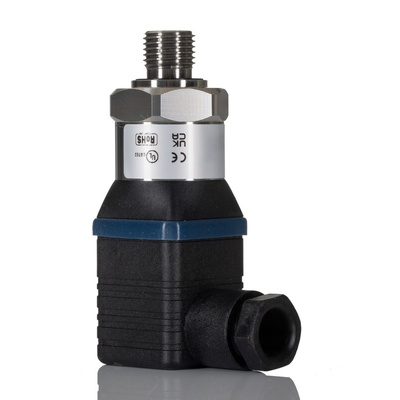

RS PRO Pressure Sensor, 0bar Min, 250bar Max, Gauge Reading

RS PRO M20 Pressure Sensor, Pressure Transmitter, Gauge, 0 to 250 bar.

M20 Pressure Sensor from RS PRO, also known in the industry as a Pressure Transmitter are best suited for various types of pressure measurement and monitoring within general industrial environments. With an exacting design all made from the best material this pressure sensor provides you with the best integrated electrical structure with temperature compensation.

If you need a cost-effective yet completely dependable and fully certified pressure transmitter that is versatile and suitable for various applications, then the RS PRO pressure sensor will not only meet but also exceed all your industrial requirements.

FEATURES & BENEFITS

• Gauge pressure measurement.


• 0 to 250 bar pressure measurement range.


• Accurate to +/- 0.5% FS.


• Angular connection DIN 175301-803A.


• G1/2A ISO 1179-2 process connection.


• 4-PIN wiring.


• Made from 316L Stainless steel.


• Welded molecular sieve.


• Pressure port should be vertically downward.


• Shock and vibration resistant.


• Operates within 86kPa to 106Kpa atmospheric conditions.


• Service life of ten million times load cycle.

APPLICATIONS

• For use in Air, water, mixed oil, and water mediums (compatible with wetted parts).


• Water treatment.


• Pump and compressor.


• Hydraulic pressure.


• Pneumatic applications.


• Mechanical equipment.


• Refrigeration.


• Measurement and control.


• Shipbuilding.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, excellent value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO seal of approval if we’re confident of their exceptional quality, which means you can be confident too.

Standards

CE, RoHS, REACH ,UL

RS PRO Datasheet
