DMS-20PC-1-DCM-C, Murata Power Solutions Digital Voltmeter DC, LED Display 3.5-Digits ±0.01 %, 33.93 x 21.29 mm, Вольтметр

Murata Power Solutions Digital Voltmeter

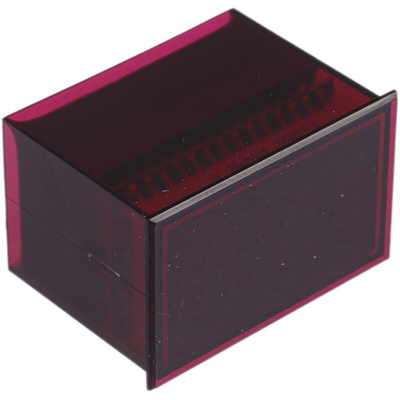

The Murata Power Solutions digital voltmeter is a self-powered, positive reading, DC voltage monitor. It is a great replacement for older, hard-to-read, analogue panel meters. The large, 0.37in/9.4mm, red, LED display is easily readable from a distance of 15ft. It has built-in reverse polarity protection to assure simple, trouble-free installation. It employs a high-resolution, 3.5 digit A/D converter and precision metal-film resistors to achieve outstanding performance. A rugged, epoxy encapsulated, polycarbonate case provides excellent protection against moisture, shock and vibration. Its supply voltage ranging between 8VDC and 50VDC.

Features and Benefits

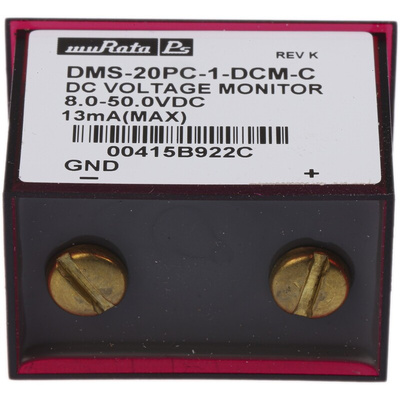

Only 2 connections required
Ultra-low power consumption (8mA typ.)
Very reliable
Operating temperature ranging between 0°C and 60°C

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

DC Voltmeter Digital Meter Datasheet
