DMS-30PC-4/20S-24RL-C, Murata Power Solutions Murata Digital Ammeter, LED Display 3.5-Digits ±1 %, Амперметр

Murata Power Solutions Digital Ammeter

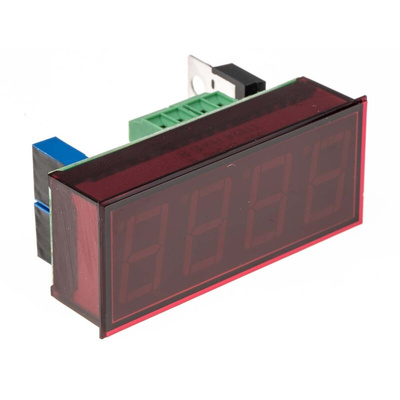

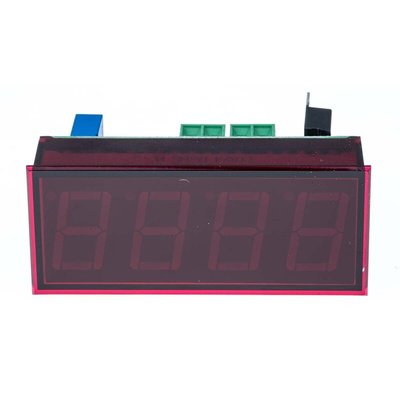

The Murata Power Solutions digital Ammeter is a 4mA to 20mA current-loop-input panel meter that offers an outstanding combination of electrical performance, display readability, ease-of-use and long-term reliability. It features a large 0.56in/14.2mm red display.
The user-friendly design accommodates virtually hundreds of different input-current/output-reading combinations. This eliminates the majority of requirements for more costly, long lead-time, factory specials"– especially in applications requiring several different-range meters. A bezel assembly, featuring secure screw fasteners and an EPDM rubber gasket, is available for applications requiring moisture and/or dust resistance."

Features and Benefits

24V Isolated-power models
DIP-switch selectable range and decimal points
Full scale input is 22mA

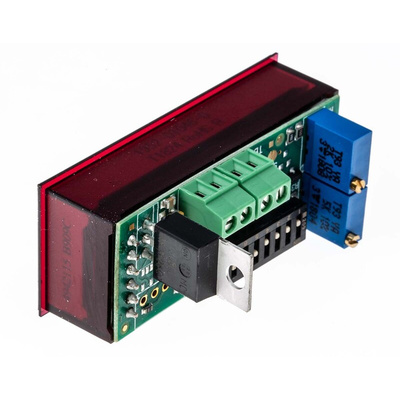

High-quality, 20-turn, gain/span and zero/offset adjust potentiometers
Impedance is 100ohms and 2V loop drop
Low power consumption is 15mA from 5V
Operating temperature ranges between 0°C and 60°C
Reliable screw-terminal input connections
Single 5V or optional 7.5 to 32V supply
Vibration-resistant package

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
