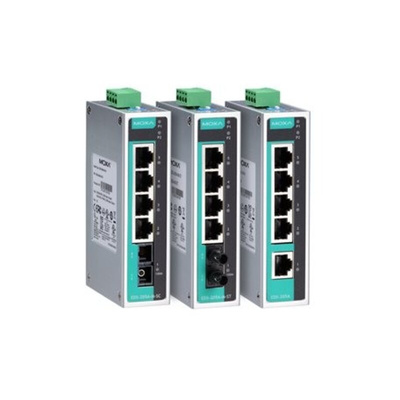

EDS-205A-M-SC, MOXA Unmanaged Ethernet Switch, 4 RJ45 Ports, 100Mbit/s Transmission, 9.6 → 60V dc

The Moxa Europe industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-205A series has 12/24/48 VDC (9.6 to 60 VDC) redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

10/100baseT(X) (RJ45 connector), 100baseFX (multi/single-mode, SC or ST connector)
Redundant dual 12/24/48 VDC power inputs
IP30 aluminium housing
-40 to 75°C operating temperature range (-T models)

Datasheet - EDS-205A-M-SC
