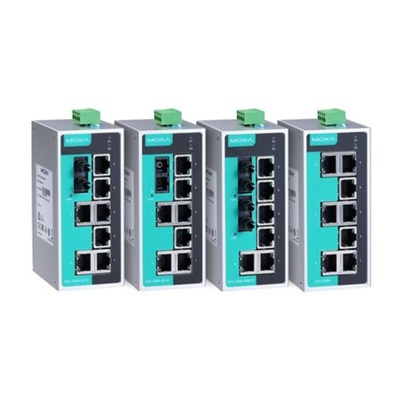

EDS-208A-S-SC-T, MOXA Unmanaged Ethernet Switch, 7 RJ45 Ports, 100Mbit/s Transmission, 9.6 → 60V dc

2551826
Номер производителя: EDS-208A-S-SC-TПроизводитель: MOXA
Цена за шт.
183281.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

The Moxa Europe industrial Ethernet switches support IEEE 802.3 and IEEE 802.3u/x with 10/100M full/half-duplex, MDI/MDI-X autosensing. The EDS-208A series has 12/24/48 VDC redundant power inputs that can be connected simultaneously to live DC power sources. These switches have been designed for harsh industrial environments, such as in maritime (DNV/GL/LR/ABS/NK), rail wayside, highway, or mobile applications (EN 50121-4/NEMA TS2/e-Mark), or hazardous locations (Class I Div. 2, ATEX Zone 2) that comply with FCC, UL, and CE standards.

10/100baseT(X) (RJ45 connector), 100baseFX (multi/single-mode, SC or ST connector)
Redundant dual 12/24/48 VDC power inputs
IP30 aluminium housing
Rugged hardware design well suited for hazardous locations (Class 1 Div. 2/ ATEX Zone 2), transportation (NEMA TS2/EN 50121-4/e-Mark), and maritime
environments (DNV/GL/LR/ABS/NK)
-40 to 75°C operating temperature range (-T models)

Техническая спецификация
pdfDatasheet - EDS-208A-S-SC-T
Дальность передачи:
40km
Номинальное напряжение питания:
9.6 → 60V dc
Порты RJ45:
7
Скорость передачи:
100Мбит/с
Тип оптоволоконного порта:
Оптический
