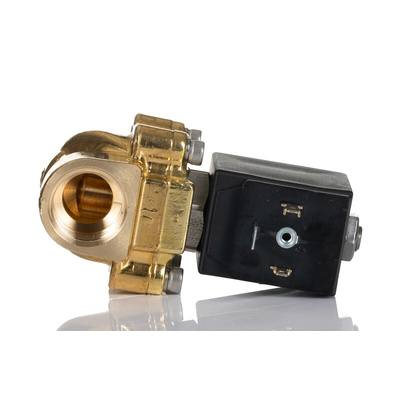

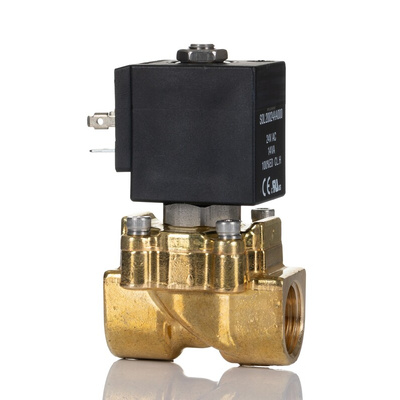

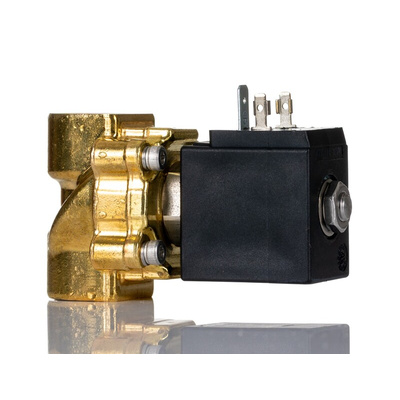

RS PRO Solenoid Valve, 2 port(s) , NC, 24 V, 1/2in

RS PRO Guided Diaphragm Solenoid Valve (2/2 NC)

A simple and compact diaphragm action solenoid valve for the regulation of fluid and air in industrial systems and suitable for use in the food industry.
Featuring a standard Female G thread type and a default closed valve position (NC) the diaphragm solenoid valve is quick and easy to install and suitable for a wide range of applications.
Constructed from Brass for high levels of corrosion and rust resistant and featuring NBR seals for excellent resistance to water, heat, acids and other chemicals.
Finished with Class H coils inside to withstand higher temperatures and the result is a professional hardwearing solenoid valve that will provide years of reliable service.

Features and Benefits

• Diaphragm operation


• Compact design


• Class H coils


• NBR seals


• Power rating of 14VA


• Working pressure range of 0 – 18 bar


• Dimensions of 52x46.5x91 mm

Suitable Applications

• Water & neutral liquids


• Air & inert gases


• Oils


• Steam

Approvals and Standards: EN1127, EN80079-36, EN80079-37, EU Declaration of Conformity, UE Declaration of Conformity.
