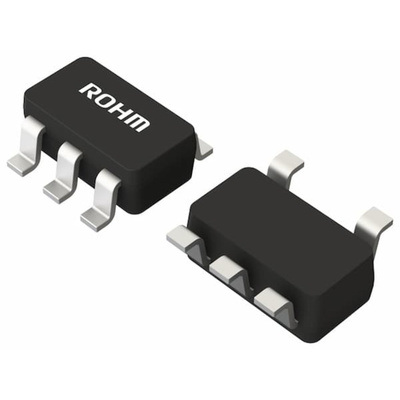

The ROHM 150mA, Adjustable output LDO regulator is linear regulator using the Nano CapTM topology (note 1) designed as low current consumption products for power supplies in various automotive applications requiring a direct connection to the battery. These products are designed for up to 45 V as an absolute maximum voltage and to operate until 150 mA for the output current with low current consumption 28 μA (Typ). These can regulate the output with a very high accuracy ±2.0 %. The output capacitor 100 nF (Typ) or more can be used for this product series, and it can realize a brilliant transient characteristic even with small capacitance.
Nano capTM topology (Note 1)
QuiCurTM topology (Note 5)
AEC-Q100 (Note 6)
Automotive grade
Over Current Protection (OCP)
Thermal Shutdown Protection (TSD)
Under Voltage Lock Out (UVLO)
Техническая спецификация
