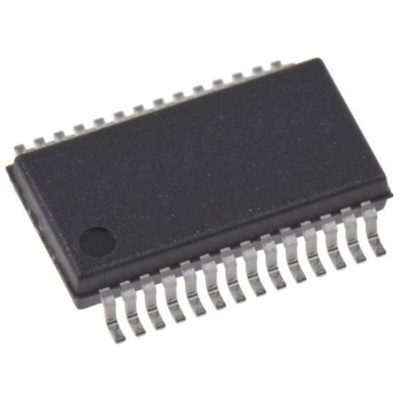

Renesas Electronics HIN211EIAZ-T Line Transceiver

The Renesas RS-232 Transmitters/Receivers interface circuits meet all ElA high-speed RS-232E and V.28 specifications and are particularly suited for those applications where 12V is not available. A redesigned transmitter circuit improves data rate and slew rate, which makes this suitable for ISDN and high speed modems. The transmitter outputs and receiver inputs are protected to 15kV ESD (Electrostatic Discharge). They require a single +5V power supply and feature on-board charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The family of devices offers a wide variety of high-speed RS-232 transmitter/receiver combinations to accommodate various applications.

Pb-free plus anneal available (RoHS compliant)
High speed ISDN compatible 230kbits/s
Requires only 0.1μF or greater external capacitors
Requires only single +5V power supply
On-board voltage doubler/inverter
Low power consumption (typ) of 5mA
Low power shutdown function (typ) of 1μA
Three-state TTL/CMOS receiver outputs

Datasheet - HIN211EIAZ-T
