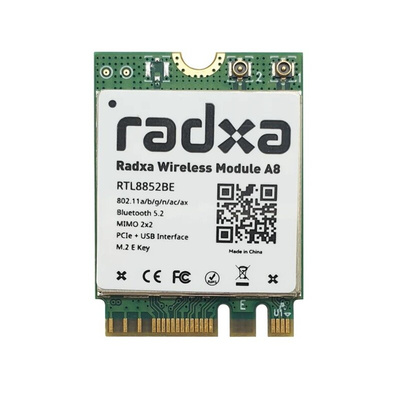

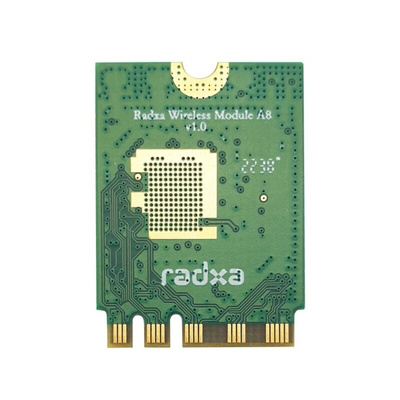

RA007-A8, Okdo M.2 Wireless Module A8 for ROCK 3A, ROCK 5A, ROCK 5B, WiFi 6, BT5.2

This M.2 wireless module is is a WiFi 6 and BT5.2 combo module based on the Realtek RTL8852BE chip. Compatible with the ROCK 3A, ROCK 5A and ROCK 5B single board computers, it enhances the wireless and Bluetooth connectivity of those ROCK single board computers.

Key features of this wireless module for ROCK

IEEE 802.11a/b/g/n/ac/ax compatible WLAN
DBBT5.0 (BT 5.2 Compliant)
Complete 802.11n MIMO solution for 2.4GHz and 5Ghz band
Maximum PHY data rate up to 286.8 Mbps using 20MHz bandwidth, 573.5Mbps using 40MHz bandwidth, 1201Mbps using 80MHz bandwidth
Backward compatible with 802.11a/b/g devices while operating at 802.11n data rates
Backward compatible with 802.11a/n/ac devices while operating at 802.11ax data rates
Compliance with Windows operating system host implemented FIPS 140 2 security requirements
Supports 20/40/80MHz 5GHz
Supports WLAN Bluetooth coexistence
Supports low power Bluetooth
Supports Bluetooth 5 system (BT 5.2 Logo Compliant)
Compatible with Bluetooth v2.1+EDR

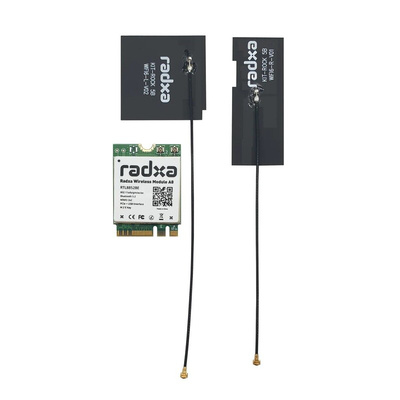

2x uFL connector

2563901 Datasheet
