RS107-D8E64H1W15, Okdo ROCK ZERO 3W 8GB with 64GB eMMC with GPIO

Join the SBC evolution with the ROCK ZERO 3W board from OKdo, our sister IoT specialist emerging technology company.
The ROCK ZERO 3W is a supercharged Single Board Computer (SBC) packed into a tiny package. It delivers serious computing power while maintaining exceptional mechanical compatibility in a compact form factor. Designed to be flexible it’s ideal for a range of users, whether you're a tech tinkerer, an IoT developer, or PC DIY devotee, the ROCK ZERO 3W serves as a robust and versatile little piece of hardware. It's tailor-made for developing, prototyping, and deployment of various applications, providing a reliable foundation for turning your innovative ideas into reality.

What makes the ZERO 3W awesome?

High performance and low power consumption - based on the reliable Rockchip RK3566 SoC, Quad-core Arm Cortex-A55 (ARMv8) 64-bit @ 1.6GHz CPU, and 8GB LPDDR4 RAM.
Energy efficient, superior power GPU – Arm Mali-G52 2EE offers 3.6x ML improvement compared to the Arm Mali-G51 MP2 GPU, and 15% better energy efficiency
Powerful multimedia processing capability – ZERO 3W benefits from H.264/H.265 decoder up to 4K@60fps, H.264/H.265 encoder up to 1080P@60fps plus a Micro HDMI port supporting displays up to 1080P@60fps resolution!
40 pin GPIO – 40P GPIO expansion which is compatible with many accessories on the market.
Flexible booting options and mass storage support – benefitting from a 32GB onboard eMMC, plus a TF card slot, the ZERO 3W offers high-speed and high-capacity storage options to suit your needs
Compatible with several operating systems - including Debian/Ubuntu Linux, the full implementation of the Arm architecture v8 instructions set, and others.

Technical specifications

SoC: Rockchip RK3566
Processor: Quad‑core Arm® Cortex®‑A55 (ARMv8) 64‑bit @ 1.6GHz
GPU: Arm Mali™‑G52‑2EE, OpenGL® ES1.1/2.0/3.2, Vulkan® 1.1, OpenCL™ 2.0
Memory: 8GB LPDDR4 RAM, 64GB eMMC
Power Requirements: Supports DC +5V voltage via power adapter with 5V/1A on the USB 2.0 OTG , Type‑C power port or 5V Power from the GPIO PIN 2 & 4
HDMI: 1x Micro HDMI ports supporting displays up to 1080P@60fps resolution
USB: 1x USB2 OTG Type C port for power and data, 1x USB3 HOST Type C port
MIPI: 1x MIPI CSI
GPIO: 40x user GPIO supporting various interface options: – up to 5 x UART, 1 x SPI bus, up to 2 x I2C bus, 1 x PCM/I2S, up to 6 x PWM, up to 28 x GPIO, 2 x 5V DC power in, 2 x 3.3V power pi
Storage: 1x TF Card Slot
Software: ARMv8 Instruction Set, Debian/Ubuntu Linux support, Hardware access/control library for Linux
Temperature: Operation temperature: 0∼50 ℃

Let's work together

OKdo has manufacturing capabilities and technical engineering consultants to support long-term stock availability and design longevity. If you would like to collaborate on your next project, let’s design the future together: contact sales@okdo.com

PLEASE NOTE

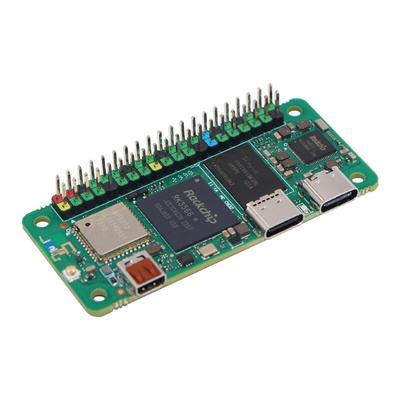

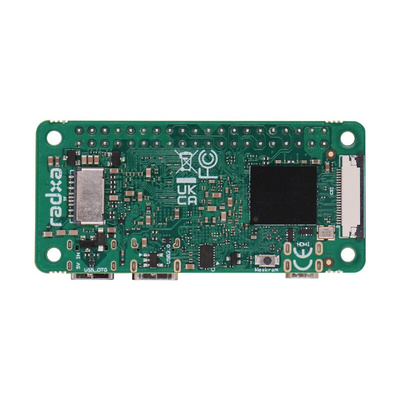

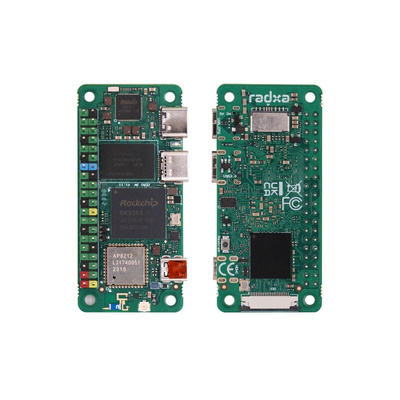

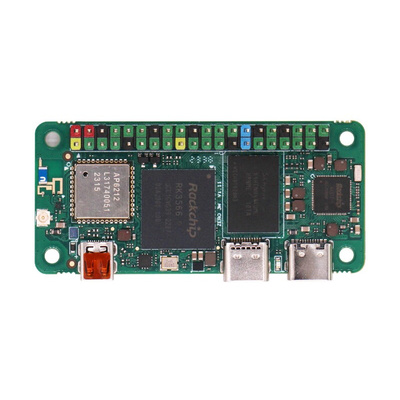

The images presented depict a particular configuration of the ROCK ZERO 3W. Please note that the actual component layout and specifications may differ based on the selected SKU.
