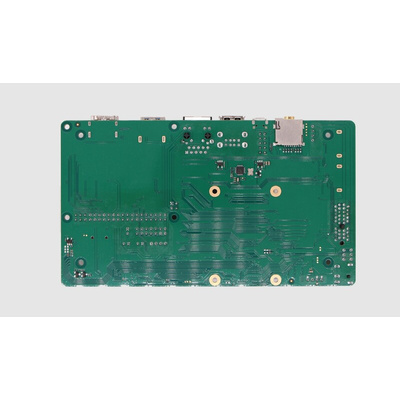

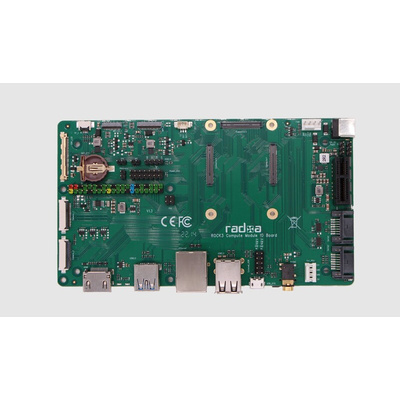

RC119-CM3-IO, Okdo Rock CM3 I/O Carrier Board

The ROCK 3 Compute Module (CM3) IO Board, a high‑performance, interface‑rich application board, that provides an SD card slot, SATA interface, PCIe, HDMI, MIPI, Ethernet, TP interface, eDP screen, USB3.0, USB2. 0, RTC, CSI, GPIO, headphone jack, fan, and other rich peripheral interfaces for your your OKdo x Radxa ROCK 3 Compute Module (CM3).

Key features of the ROCK 3 Compute Module (CM3) IO Board

Half mini-itx design
Support for multiple display interfaces including HDMI, 2x MIPI DSI/LVDS, eDP, with the option to have dual displays
Support for x1 PCIe card
Up to 2x SATA via USB3.0, or PCIe 2.0
Supports Ubuntu/Debian and Android

Connectivity Options

5 x USB 2.0 ports (2 x internal USB2 headers, 3 x type connectors)
1 x USB 3.0 port (5Gbps, type A connector)
1x USB 2.0 OTG (Micro USB connector)
1 x PCIe 1-lane Host, Gen 2 (5Gbps, x1 PCIe connector)
2 x SATA 7P connectors (1 x shared with USB 3, 1 x shared with PCIe)
1 x microSD card connector
40 x GPIO pin header

Network Option with PoE Support

1x Gigabit Ethernet RJ45 with PoE support

Video and Audio Connectivity

1 x HDMI up to 4K x 2K@60HZ
1 x eDP support 4K x 2K@60HZ
2 x MIPI DSI 4 lanes, supporting dual displays up to 1920 x 1080@60HZ
Dual MIPI CSI input
5mm headphone jack with mic support

Additional features of the ROCK 3 Compute Module (CM3) IO Board

Lion battery connector
RTC battery connector
FAN connector

Datasheet
