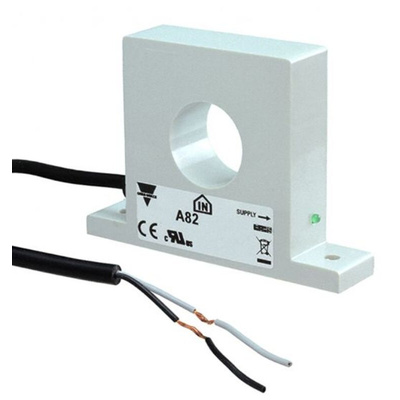

A82-20100, Carlo Gavazzi A82 Series Current Transformer Current Transformer, 100A Input, 100A, 4 → 20 mA Output, 27mm Bore,

The Carlo Gavazzi true RMS AC current metering transformer for 250 AAC. Output current in accordance with IEC 60381-1 (A 82-10, A 82-20) or output voltage in accordance with IEC 60381-2 (A 82-30). A 82-10 and A 82-20 can be used with relays DIB01, PIB01, DIC01 or PIC01. A 82-30 can be used with DUB01, PUB01, DUB71, DUC01 or PUC01. All units can be directly connected to a PLC. Power supply ON is indicated by a green LED on the side of the housing.

5 types of input
Output areA 82-10 are 0 - 20 mADC (source), A 82-20 are 4 - 20 mADC (sink), A 82-30 are 0 - 10 VDC
Easy interface to PLC or setpoint relays

Datasheet - A82-20100
