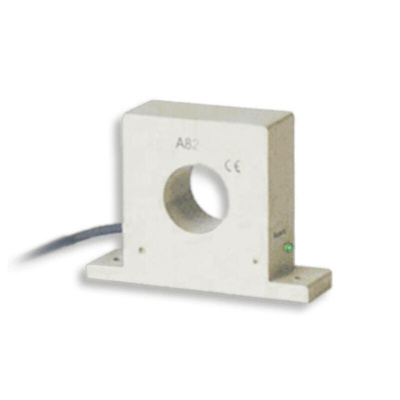

A82-3025, Carlo Gavazzi A82 Series Current Transformer Current Transformer, 25A Input, 25A, 30 A Output, 27mm Bore, 0 → 10

The Carlo Gavazzi true RMS AC current metering transformer for 25 AAC. Output current in accordance with IEC 60381-1 (A 82-10, A 82-20) or output voltage in accordance with IEC 60381-2 (A 82-30).A 82-10 and A 82-20 can be used with relays DIB01, PIB01, DIC01 or PIC01. A 82-30 can be used with DUB01, PUB01, DUB71, DUC01 or PUC01. All units can be directly connected to a PLC. Power supply ON is indicated by a green LED on the side of the housing.

5 types of input are
0 - 25 AAC
0 - 50 AAC
0 - 100 AAC
0 - 250 AAC
0 - 500 AAC
Output are
A 82-10 are 0 - 20 mADC (source)
A 82-20 are 4 - 20 mADC (sink)
A 82-30 are 0 - 10 VDC
Easy interface to PLC or setpoint rela

Datasheet - A82-3025
