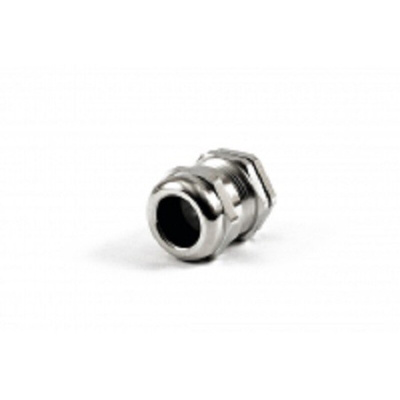

1427BCGM20L, Hammond 1427BCG Series Grey Nickel Plated Brass Cable Gland, M20 Thread, 10mm Min, 14mm Max, IP68

The Hammonds 1427BCG series of liquid-tight cordgrip made from nickel plated brass used for where cable is entering or leaving an enclosure. It accepts a wide range of cable diameters due to large opening and NBR seal made up of nitrile rubber. This strain relief elements tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.

Nylon locknut and EPDM O-ring included
Operating temperature at static state is -40°C to 100°C
Outer length is 24 mm
Temporary heat resistance up to 120°C
Designed to meet NEMA Type

Datasheet - 1427BCGM20L
