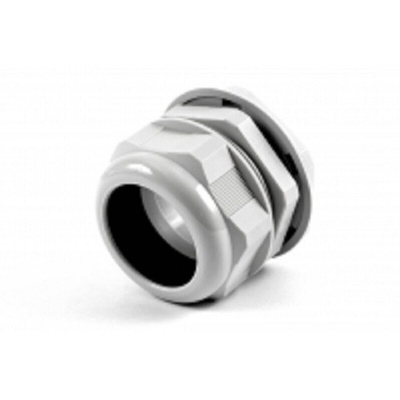

1427NCGPG48G, Hammond 1427NCG Series Grey Nylon Cable Gland, PG48 Thread, 37mm Min, 44mm Max, IP68

The Hammonds 1427NCG series of liquid-tight cordgrip which is made from nylon available in black & grey colors. It is used where cable is entering or leaving an enclosure. It accepts a wide range of cable diameters due to large opening and NBR (nitrile rubber) seal. The strain relief elements were used for tighten in a circular sequence on the sealing ring to give outstanding strain relief without twisting or damaging the cable.

Nylon locknut and EPDM O-ring included
Operating temperature at static state is -40°C to 100°C
Outer length is 49 mm
Designed to meet NEMA
UL94-V2 flammability rating

Datasheet - 1427NCGPG48G
