RS PRO Ultrasonic Level Sensor, RS485 Output, Threaded, ABS/PVC Body

RS PRO Ultrasonic Level/Distance Sensor

Get accurate results no matter what your environment throws at you with RS PRO's ultrasonic Level/Distance Sensor. This easy-to-use, push-button programming device is perfect for measuring liquid levels in tanks and box heights for sorting purposes, all while providing maximum flexibility in a variety of applications. With RS PRO Ultrasonic Level/Distance Sensors, you can trust that your measurements will always be precise and reliable.

Why Would You Choose this Ultrasonic Sensor?

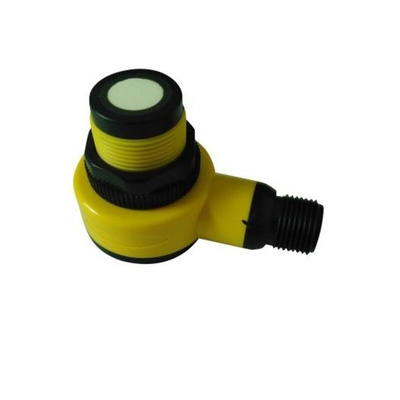

This Ultra-sonic sensor is designed with a T-style right-angled housing with a threaded nose. It offers dual analogue (current) and digital outputs, a Touch-to-teach push-button set-up and a remote teaching facility. During application, operates using high-frequency sound waves that are inaudible to the human ear. The RS PRO Ultrasonic sensor precisely detects objects made from various materials regardless of their shape, colour, or surface contour.

Features and Benefits

• Dual analogue (current) and digital outputs


• Touch-to-teach push-button set-up and remote teach facility


• Programme both outputs together or independently


• Automatically scaling analogue output


• Offers dual-discrete models for ON/OFF switching or pump/level control


• PNP complementary outputs with full protection


• Fast response times


• 2m pre-cabled or M12 connector termination


• Connector models supplied with 2m PUR, single-ended, straight connector lead

General Specifications

• Detection Range 80mm – 1000mm


• Transducer Frequency 200KHz


• Sensor Configuration Diffuse Reflection


• Output Type RS485


• Response Time 85 ms


• Beam Angle 8°


• Deviation of the characteristic curve ±1% of full-scale value


• Repeat accuracy ±0.1% of full-scale value


• Wire Technique 4-wire


• Electrical Connection


• Male connector M12 4 pins


• Cable Length 2m


• Minimum Operating Temperature -25 °C


• Maximum Operating Temperature 75 °C


• Operating Voltage Range 5 to 12V DC

Mechanical Specifications

• Body Style: Cylindrical


• Thread Size: M18


• Housing Material: ABS/PVC


• Front Material: Epoxy


• Dimensions: 30 mm x 36 mm


• Width / Diameter: 30 mm


• Length: 36 mm


• Weight: 50g


• Compliance/Certifications CE / RoHS EN 60947-5-2:2020

Applications

• Liquid and Solid Level Measurement


• Position Detection


• Factory automation


• Tanks, Totes, Processing
