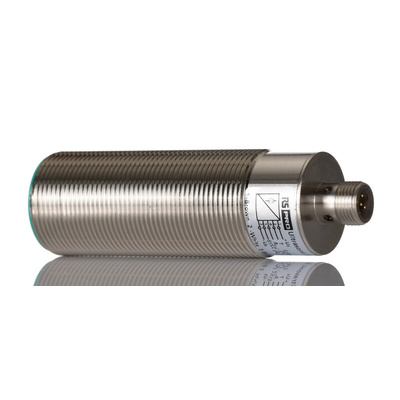

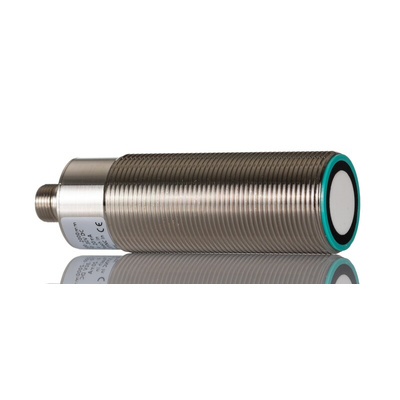

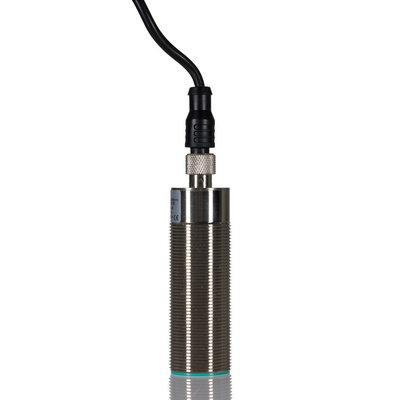

RS PRO Ultrasonic Barrel-Style Proximity Sensor, M30 x 1.5, 200 → 2000 mm Detection, 4 → 20 mA Output,

RS PRO Ultrasonic Proximity Sensor

Get accurate and reliable measurements with RS PRO Ultrasonic Proximity Sensor. This powerful sensor is designed to detect short-range objects, measure liquid/solid material & detect distance for a variety of applications. Enjoy precise readings with internal temperature compensation and use them in any environment, from manufacturing plants to industrial settings. Unlock the potential of your business operations and rely on RS PRO Ultrasonic Proximity Sensors for your measurement needs

Why Would You Choose This Sensor?

Our ultrasonic proximity sensor detects the presence or absence of any object, regardless of material, with up to 99% accuracy. The perfect tool for a wide variety of uses such as navigation, robotics or safety systems, you can trust our powerful and reliable sensor to get the job done quickly and accurately.

Features and Benefits

• Single-head system


• Switch output


• Various output functions


• Program input


• Synchronisation options


• Deactivation option


• Temperature compensation


• Insensitive to compressed air

General Specification

• Detection Range: 200mm – 2000mm


• Transducer Frequency: 112KHz


• Sensor Configuration: Diffuse Reflection


• Output Type: 1 analogue output 4…20mA


• Response Time; 125ms


• Beam Angle: 8°


• Deviation of the characteristic curve: ±1% of full-scale value


• Repeat accuracy: ±0.1% of full-scale value


• Terminal Type: M12 - 5 Pin


• Indicator: LED


• Wire Technique: 5-wire


• Electrical Connection Male connector: M12 5 pins

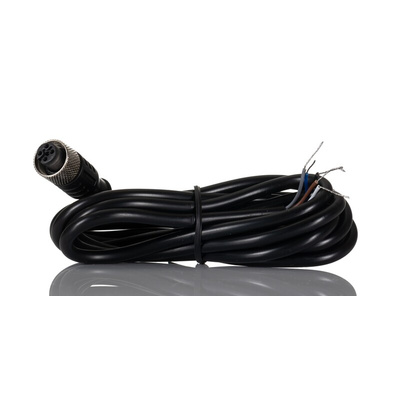

• Cable Length: 2m

Electrical Specification

• Operating Voltage Range: 10V dc to 30V dc


• Operating Temperature: -25°C to 75°C


• Voltage Drop: 2V


• Maximum Load: 500 Ohm

Applications

• Robotics


• Safety systems
