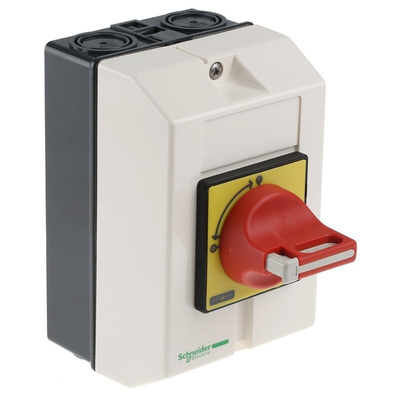

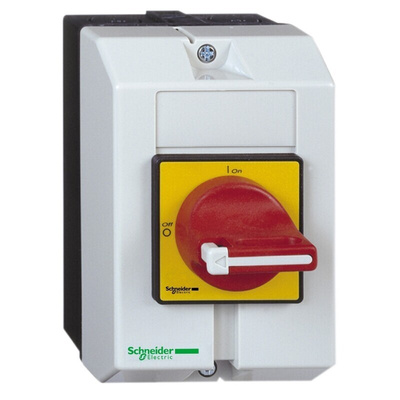

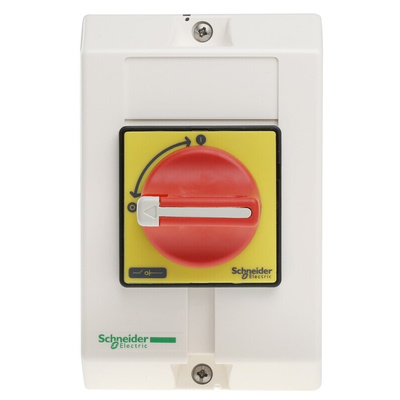

VCF0GE, Schneider Electric 3P Pole Panel Mount Isolator Switch - 20A Maximum Current, 7.5kW Power Rating, IP65

Schneider Electric Isolator Switch - TeSsys Vario Range

Forming part of Schneider Electrics TeSys Vario Switch range is this isolator switch which is sometimes referred to as a switch disconnector. Comprised of a non-corrosive and resistant material that is suitable for harsh environments, this three-pole version is perfectly suited for manual motor control applications. Super easy to connect and wire as it comes to you undrilled, which enables variable cable entry positions.

switch-disconnectors are compact and robust, they are ideal for hard-wearing industrial environments. This range of isolator switches from Schneider is suitable for use in applications where there is a need to disconnect electrical equipment from the circuit. The need for this form of local isolation is most commonly needed for repair and maintenance of the electrical equipment on the de-energised circuit. These disconnect switches can also be used as safety switches.

Features & Benefits

• Performs local isolation, manual override & safety switch functions
• For use in applications where there is a need to disconnect electrical equipment from the circuit, most commonly needed for repair and maintenance of electrical equipment
• These disconnect switches can also be used as safety switches
• Created and designed to safely isolate a circuit whilst it is being used or maintained

What is the difference between a fused switch disconnector and a non-fused switch disconnector?

Unlike fused switch disconnectors, a non-fuse isolator switch does not use a fuse to break or put a circuit into isolation, they instead use a rotary to disconnect or isolate a circuit.

How does an isolator switch work?

This type of isolator switch can sometimes be referred to as a switch disconnector, this is because it has been created and designed to safely isolate a circuit whilst it is being used or maintained. This isolator switch breaks or isolates a circuit through the rotation of the rotary handle and locking ring. This type of non-fused isolator switch will be found isolating circuit breakers, transmission lines, transformers and a multitude of other applications.

Note

Expandable by attachment of auxiliary contact or main/neutral pole (except 10,16 20, 25 & 32A Typically: 257-3752)

Schneider Electric VARIO Series Isolator Switch, 3-Poles, 7.5kW - VCF0GE

This Schneider Electric isolator switch is a high performance, 3 phase panel mount switch designed for use in a variety of Electrical applications. With an IP65 rating, this isolator switch ensures reliable operation even in challenging environments. The switch features a red handle for easy identification and operation. Suitable for a wide range of industries, this isolator switch is a green premium product, providing environmentally friendly solutions for your automation and Electrical needs.

Features & Benefits

• High performance 20A isolator switch suitable for 3 phase applications
• IP65 rating ensures protection against dust and water ingress, making it ideal for outdoor use
• Red handle for easy identification and operation in industrial settings
• Green Premium product for environmentally conscious users
• Panel mount design for easy installation and integration into control panels

Applications

• Ideal for use in industrial automation systems for safe isolation of electrical circuits
• Suitable for use in machinery and equipment where emergency shutdown is essential
• Perfect for applications requiring high durability and reliable performance
• Designed for use in control panels, switchgear, and distribution systems

Can it be used in outdoor applications?

Yes, the Schneider Electric isolator switch is IP65 rated, making it suitable for outdoor use in harsh environments.

Will it work for 3-phase electrical systems?

Yes, this isolator switch is specifically designed for 3-phase applications, ensuring reliable and safe operation.

Is this product suitable for emergency shutdown procedures?

Yes, the isolator switch is an excellent choice for applications requiring emergency shutdown capabilities.

Can it be integrated into existing control panels?

Yes, the panel mount design of the switch allows for easy installation and integration into a variety of control panels.
