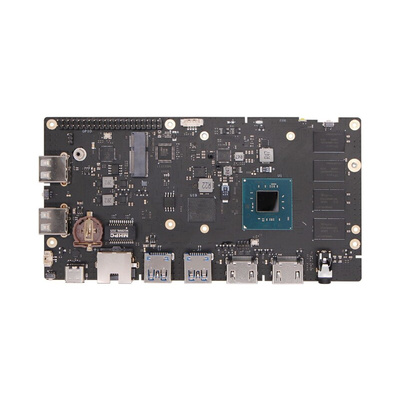

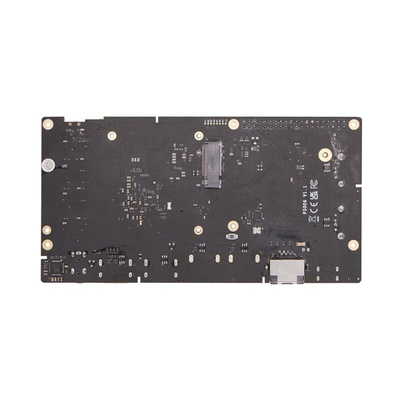

RS006-D8H1, Radxa X2L 8GB Single Board Computer

Introducing Radxa X2L with Intel J4125 processor – a high-performance, cost-effective single board computer. Ideal for diverse applications, from efficient office productivity to multimedia-rich tasks and small servers. This lightweight, portable SBC excels in graphics processing, multimedia, network connectivity, and various I/O operations, providing powerful performance for your needs.

What sets the Radxa X2L SBC apart?

Versatile Performance: Radxa X2L, powered by the Intel J4125 processor, excels in various applications, from office productivity to multitasking and immersive entertainment.
Efficient Networking: The RTL8111H controller provides Gigabit Ethernet connectivity for high-speed networking with power efficiency.
Dual Display Flexibility: HDMI interfaces support 4096 x 2160 resolution at 30Hz, catering to dual display setups for productivity or entertainment on a range of compatible devices.
USB Connectivity: Two USB 2.0 and two USB 3.0 Type-A ports offer versatile connections for peripherals, ensuring fast data transfer with high-speed USB 3.0 devices.
High-Speed Storage Solution: The M.2 M Key connector supports PCIe 2.0 for M.2 NVMe SSDs, enabling direct OS boot for faster startup times and efficient system performance.
Wireless Module Compatibility: The M.2 E Key connector supports PCIe 2.0 signals and USB connectivity, making it compatible with wireless modules for both WiFi and Bluetooth.
40-pin GPIO expansion header - supports a wide range of interface options.
Optimal Operating Conditions: Designed to operate between 0°C to 50°C, the Radxa X2L, with its Intel J4125 processor, adapts efficiently to various computing scenarios, ensuring minimal heat generation and a responsive user experience.

Technical Specifications

Processor: Intel® Celeron® Processor J4125
GPU: Intel® UHD Graphics 600
Memory: 8GB LPDDR4 RAM up to 2400 MT/s
Power Requirements: The Radxa X2L supports the following power input: USB Type‑C PD Version 2.0 with 9V/2A, 12V/2A, 15V/2A and 20V/2A or Power adapter with fixed voltage in 9V to 20V range on the USB Type‑C port
HDMI: Dual HDMI ports supporting displays up to 4Kp60 resolution
USB: 2x USB 2.0 HOST Type A Port, 2x USB 3.0 HOST Type A Port
Storage: M.2 M Key Connector for M.2 NVMe SSD
UARTS: Up to 2x UART
On/Off Power Button: YES
Software: Intel® 64 Instruction Set, Windows 10 64‑bit,Debian / Ubuntu Linux support, Hardware access/control library for Linux
Temperature: Operation temperature: 0∼50 ℃
