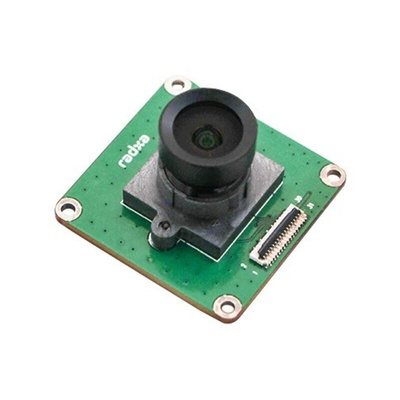

AS001, Okdo Radxa ROCK 4K Camera for use with ROCK 5A and 5B Single Board Computer

This 4K Camera is a compact, camera module tailor-made for the ROCK 5 Series of single board computers (ROCK 5 Model A and ROCK 5 Model B). It simply connects to your ROCK 5 via the CSI interface. The camera not only benefits from 4K resolution, it has an IMX415 chip, and provides 8.29M pixels. It's perfect for surveillance solutions, FA cameras, industrials cameras, and much more.

Technical Specifications

Sensor:

SONY IMX415
Diagonal 6.43 mm (Type 1/2.8)
8.29M pixel
Unit cell size： 1.45 μm (H) ´ 1.45 μm (V)

Output:

CSI‑2 serial data output (2 Lane / 4 Lane)
RAW10 / RAW12 output

Lens Specification:

Interface Type: M12XP0.5
Focal Length(EFL): 2.95±5%mm
Back Focal Length(BFL): 4.64mm
Focal Length(EFL): 2.95±5%mm
Single lens operating temperature: ‑40°C ∼ +85°C
FOV: Field of view (Diagonal/Horizontal/Vertical) CRA
D=88.2±5° H=75±3° V=59±2° 15°
Ribbon cable length: 150 mm
