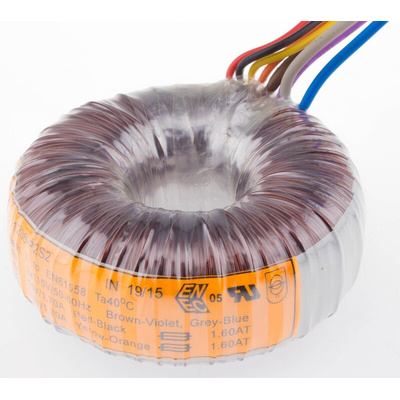

91949-P2S2, Nuvotem Talema 115 V ac, 230 V ac, 2 x 15V ac Toroidal Transformer, 50VA 2 Output, Трансформатор

Open Style with Leads, 115/230Vac Primary 15VA to 1000VA

High quality open style toroidal transformers with twin 115Vac 50/60Hz primary windings which may be connected in series for 230V or parallel for 115V operation. Twin secondary windings may be connected in series or parallel or used independently.

Small size and low weight compared with traditional stacked lamination types
Extremely low level of radiated magnetic field
Very low induced noise (hum)
Very low iron loss
Double insulated primary leads
Supplied with mounting kit
100% electrical and flash tested

Warning

Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis or framework as this would create a potentially dangerous 'shorted-turn'.

Approvals

UL506, EN61558

Supplied with

Full mounting kit

Approvals

VDE 0551; VDE 0550; UL 506

Standards

EN61558; EN60950; EN60065; BS415

Open-Style-2x115V-Primary-0050VA_Datasheet
