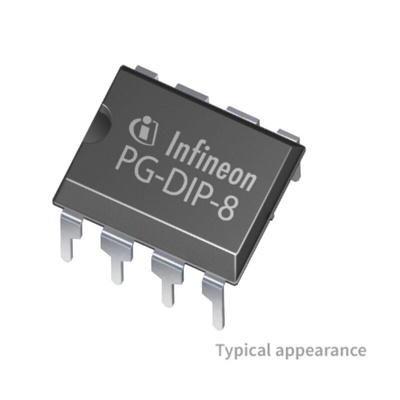

Infineon IRS2104PBF, 600 mA, 10 → 20V 8-Pin, 8 Lead PDIP

The Infineon half bridge driver is a high voltage, high speed power MOSFET and IGBT driver with dependent high- and low side referenced output channels. Proprietary HVIC and latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output, down to 3.3 V logic. The output drivers feature a high pulse current buffer stage designed for minimum driver cross conduction. The floating channel can be used to drive an N-channel power MOSFET or IGBT in the high-side configuration which operates from 10 V to 600 V.

Floating gate driver designed for bootstrap operation
Fully operational to +600 V
Tolerant to negative transient voltage, dV/dt immune
Gate drive supply range from 10 V to 20 V
Under voltage lockout
33 V, 5 V, and 15 V logic input compatible
Cross-conduction prevention logic
Matched propagation delay for both channels
Internal set dead time
High-side output in phase with input
Shutdown input turns off both channels

Datasheet - IRS2104PBF
