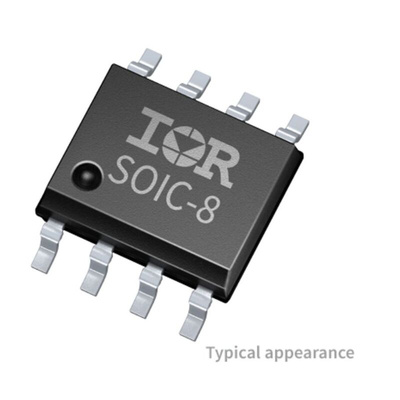

Infineon IRS4427SPBF, 3.3 A, 6 → 20V 8-Pin, SOIC8N

The Infineon dual low side driver are low voltage, high speed power MOSFET and IGBT drivers. Proprietary latch immune CMOS technologies enable ruggedized monolithic construction. The logic input is compatible with standard CMOS or LSTTL output. The output drivers feature a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays between two channels are matched.

Wide supply voltage rage with 25 V VCC max
Gate drive supply range from 6 V to 20 V
CMOS Schmitt-triggered inputs
33 V and 5 V logic compatible
Two independent gate drivers
Matched propagation delay for both channels
Outputs in phase with inputs

Datasheet - IRS4427SPBF
