RS PRO 35 x 26 x 31 mm 19 Way Female Right Angle Feedthrough HDMI Connector

RS PRO Right Angle HDMI Feedthrough Connector

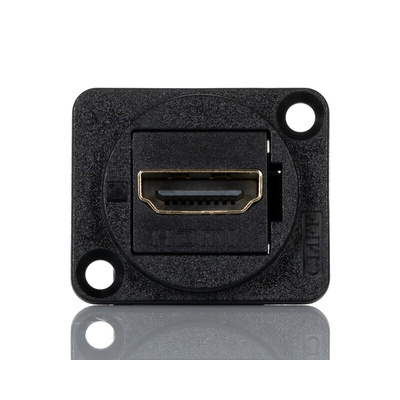

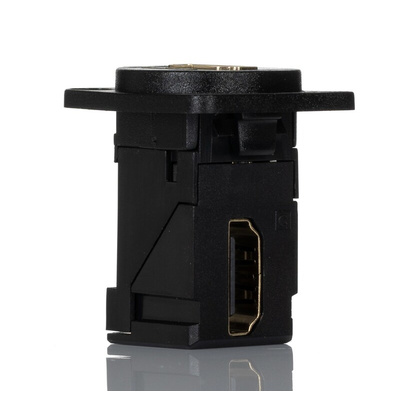

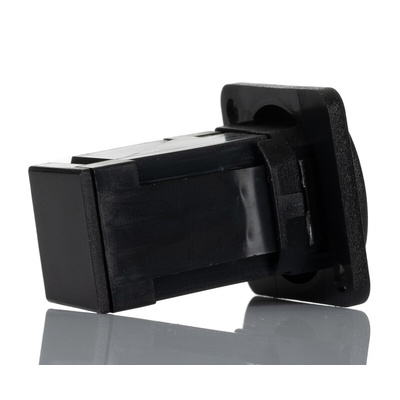

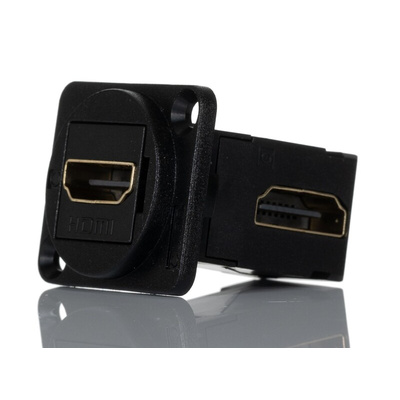

A female right angle HDMI feedthrough connector enabling the safe feeding of HDMI cables through a standard XLR format chassis without the need to solder.
Suitable for front and back connection and mounted via a standard XLR (External Line Return) cut out, featuring a low profile 90 degree design the connector is ideal for use in tight areas where space is limited, or cable access is a challenge.
Built with quality in mind this female HDMI connector features Brass connectors for strength and is finished with a Gold plating for excellent wear resistance, even with repeated connections.
Ideal for use in a wide range of applications including data connections for instrument panels, the creation of custom I/O configurations, video and audio equipment, displays.

Features and Benefits

• Female


• Right angle design


• Fits a standard XLR 24mm panel cut out


• Black Polyamide frame with countersunk fixing holes


• No soldering or punch termination required


• Front and rear connection


• Low rear profile


• Dimensions of 31 x 19 x 35mm

Standards and Approvals: REACH, RoHS compliant
