RS PRO Female RJ12 Connector, Screw Mount, Cat3

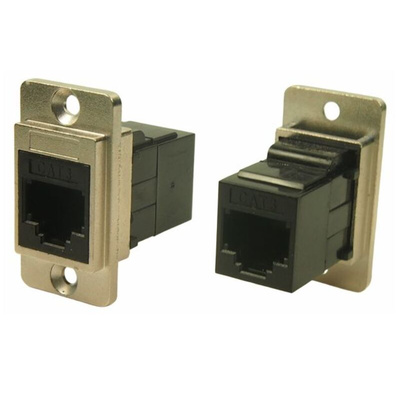

RS PRO RJ12 Feedthrough Connector (Cat 3)

A female RJ12 feedthrough connector enabling the safe attachment of Cat 3 cables through panels without the need to solder.
Suitable for front and back connection and mounted via a standard rectangular cut out, featuring a low profile design the connector is ideal for use in tight areas where space is limited.
Built with quality in mind this female RJ12 connector features Phosphor Bronze connectors for a high level of reliability and is finished with a Gold plating for excellent wear resistance, even with repeated connections.
Ideal for use in a wide range of applications and environments including data connections for instrument panels, the creation of custom I/O configurations, telephone exchanges and audio equipment.

Features and Benefits

• Female


• Suitable for Cat 3 cable


• Nickel die-cast frame with M3 fixing holes


• No soldering or punch termination required


• Front and rear connection


• Low rear profile


• Voltage rating of 125V


• Current rating of 1.5A


• Dimensions of 33 x 19 x 30.5mm

Standards and Approvals: REACH, RoHS compliant
