RS PRO Single-Port RJ45 Female Feedthrough Ethernet Connector, Cat5e, Unshielded

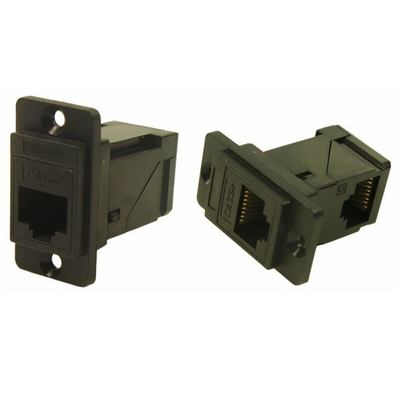

RS PRO Right Angle RJ45 Feedthrough Ethernet Connector (Cat 5e)

through equipment and instrument panels without the need to solder.
Suitable for front and back connection and mounted via a standard rectangular cut out, featuring a low profile 90 degree design the connector is ideal for use in tight areas where space is limited, or cable access is a challenge.
Built with quality in mind this female RJ45 connector features Phosphor Bronze connectors for a high level of reliability and is finished with a Gold plating for excellent wear resistance, even with repeated connections.
Ideal for use in a wide range of applications and environments including data connections for instrument panels, the creation of custom I/O configurations and recording studios and audio equipment.

Features and Benefits

• Female


• Suitable for Cat 5e cable


• Right angle design


• Black Polyamide frame with countersunk fixing holes


• No soldering or punch termination required


• Front and rear connection


• Low rear profile


• Voltage rating of 125V


• Current rating of 1.5A


• Dimensions of 35.3 x 19 x 35.5mm

Standards and Approvals: T568A & T568B wiring, ISO/IEC 11801, EN50173, ANSI/TIA/EIA 568B.2, REACH, RoHS compliant
