RS PRO Single-Port RJ45 Female Feedthrough Ethernet Connector, Cat6, Unshielded

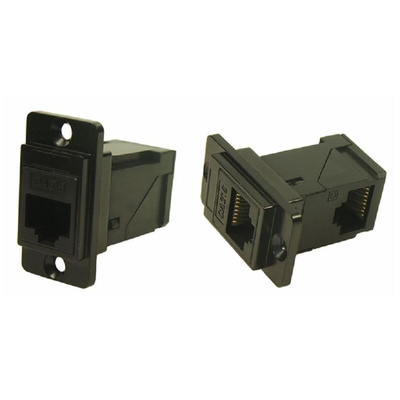

RS PRO Right Angle RJ45 Feedthrough Ethernet Connector (Cat 6)

A female right angle RJ45 feedthrough connector enabling the safe feeding of Cat 6 ethernet cables through equipment and instrument panels without the need to solder.
Suitable for front and back connection and mounted via a standard rectangular cut out, featuring a low profile 90 degree design the connector is ideal for use in tight areas where space is limited, or cable access is a challenge.
Built with quality in mind this female RJ45 connector features Phosphor Bronze connectors for a high level of reliability and is finished with a Gold plating for excellent wear resistance, even with repeated connections.
Ideal for use in a wide range of applications and environments including data connections for instrument panels, the creation of custom I/O configurations and recording studios and audio equipment.

Features and Benefits

• Female


• Suitable for Cat 6 cable


• Right angle design


• Black die-cast frame with M3 fixing holes


• No soldering or punch termination required


• Front and rear connection


• Low rear profile


• Voltage rating of 125V


• Current rating of 1.5A


• Dimensions of 35.3 x 19 x 35.5mm

Standards and Approvals: T568A & T568B wiring, ISO/IEC 11801, EN50173, ANSI/TIA/EIA 568B.2, REACH, RoHS compliant
