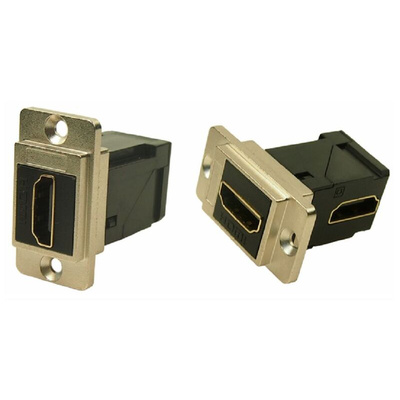

RS PRO 35.3 x 19 x 35.5 mm 19 Way Female Right Angle Feedthrough HDMI Connector

RS PRO Right Angle HDMI Feedthrough Connector

A female right angle HDMI feedthrough connector enabling the safe attachment of HDMI cables through equipment and instrument panels without the need to solder.
Suitable for front and back connection and mounted via a standard rectangular cut out, featuring a low profile 90 degree design the connector is ideal for use in tight areas where space is limited, or cable access is a challenge.
Built with quality in mind this female HDMI connector features Brass connectors for strength and is finished with a Gold plating for excellent wear resistance, even with repeated connections.
Ideal for use in a wide range of applications including data connections for instrument panels, the creation of custom I/O configurations, video and audio equipment, displays.

Features and Benefits

• Female


• Right angle design


• Rectangular cut out


• Nickel dies-cast frame with countersunk fixing holes


• No soldering or punch termination required


• Front and rear connection


• Low rear profile


• Dimensions of 35.3 x 19 x 35.5 mm

Standards and Approvals: REACH, RoHS compliant
