RJHSE5381, Amphenol ICC RJHS Series Female RJ45 Connector, Through Hole, Cat5e, Tin Plated Copper Alloy Shield, Разъем

Amphenol LED Sockets

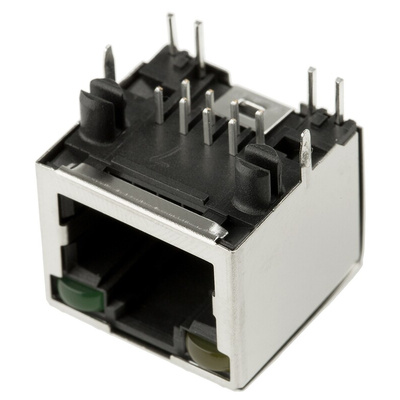

From Amphenol, this range of PCB mounting RJ45 (8//8 way) socket have built-in LEDs and are designed for category 5 performance. Available in both shielded and unshielded versions, a thermoplastic body ensures a component that is robust and compact. The range is available not only with discrete green and yellow LEDs, but also with bi-colour LED versions. The bi-colour types have two LEDs, both with green/yellow indication. All models are highly reliable and excellent quality.

Features & Benefits

A maximum contact resistance of 10 mΩ
A minimum insulation resistance of 500 mΩ
A current rating of 1.5A
A voltage rating of 125 V ac

RJ45 Socket LED Ratings

Forward Current: 7 mA
Forward Voltage: 2 V to 1 V (Typical.)
Reverse Voltage: 5 V Minimum
Power Dissipation Green: 24 mW
Power Dissipation Yellow: 36 mW

Note

For discrete types, viewing from the front of the socket, the green LED is on the right, the yellow on the left.

The Amphenol ICC, single port, right angle female PCB mounting RJ45 8 way socket have built-in LEDs and is designed for category 5 performance. It has phosphor bronze contact material.

Maximum contact resistance of 10 mΩ
Minimum insulation resistance of 500 mΩ
Current rating of 1.5A
Voltage rating of 125 V ac
Highly reliable and excellent quality
